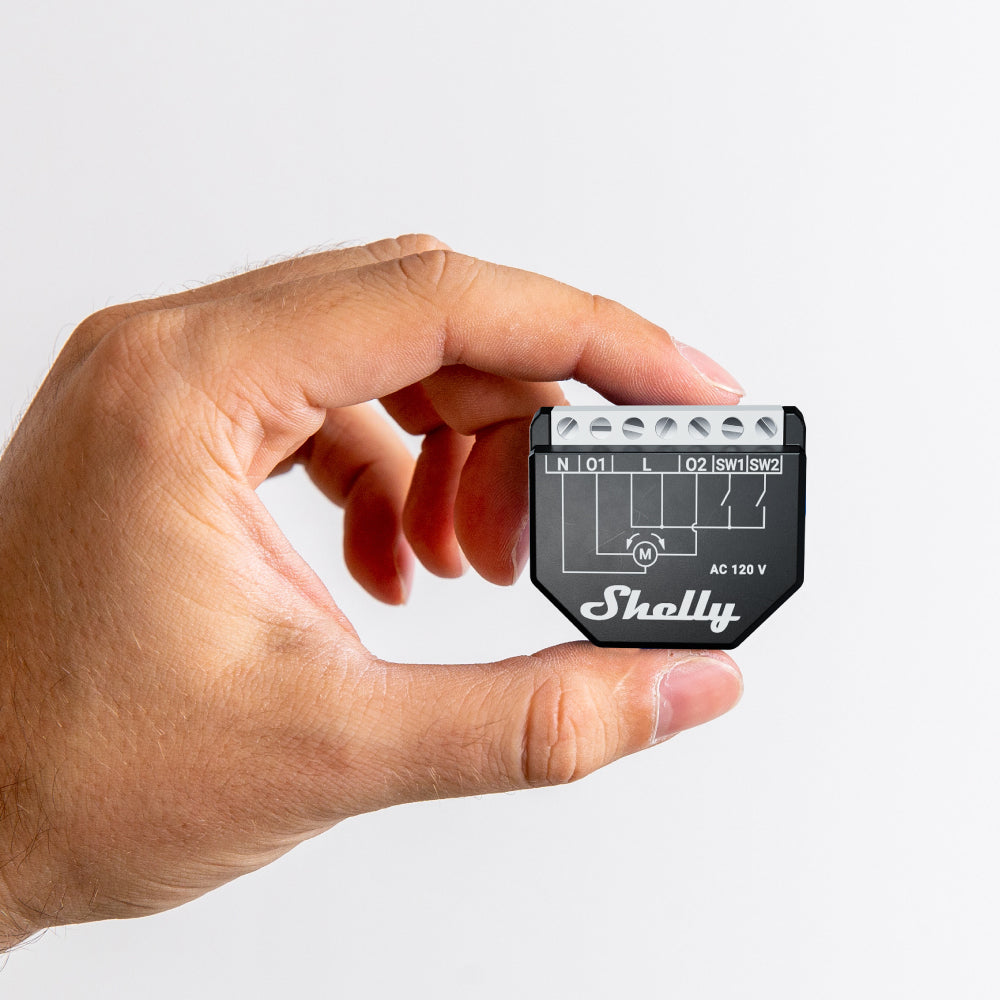

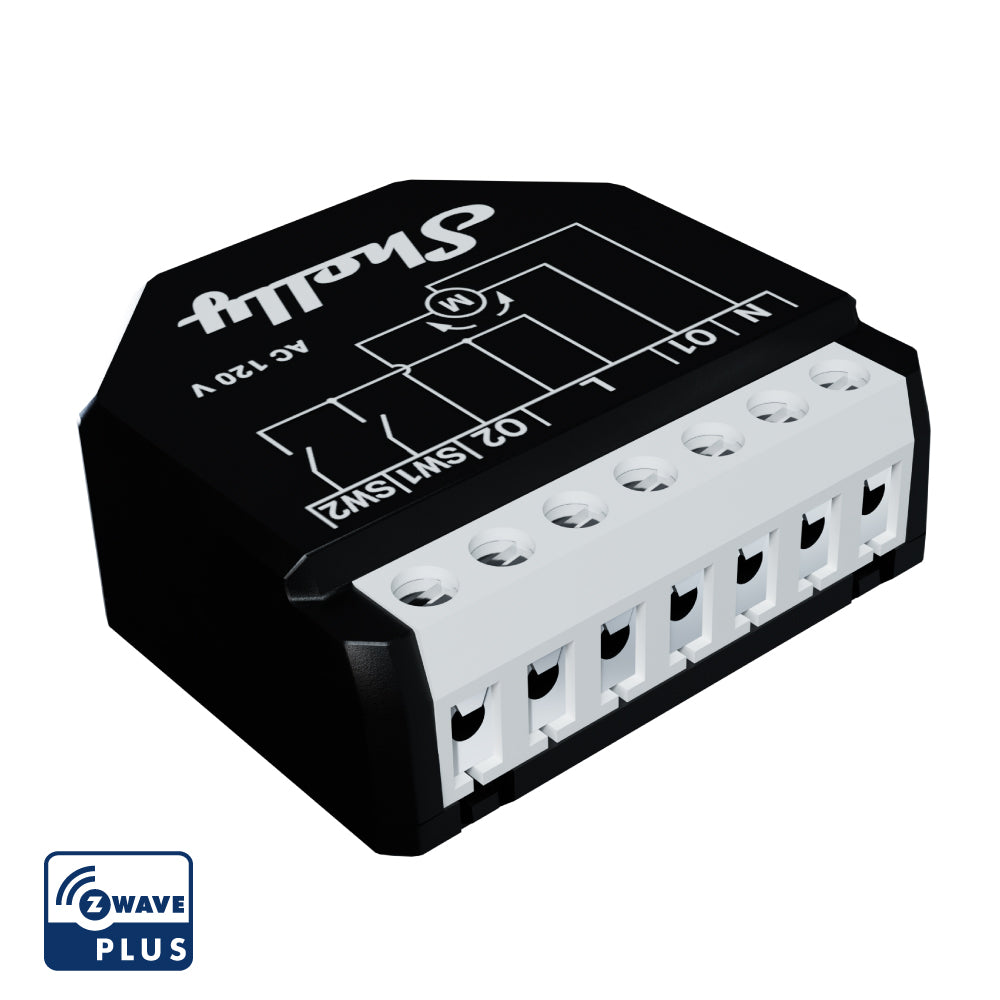

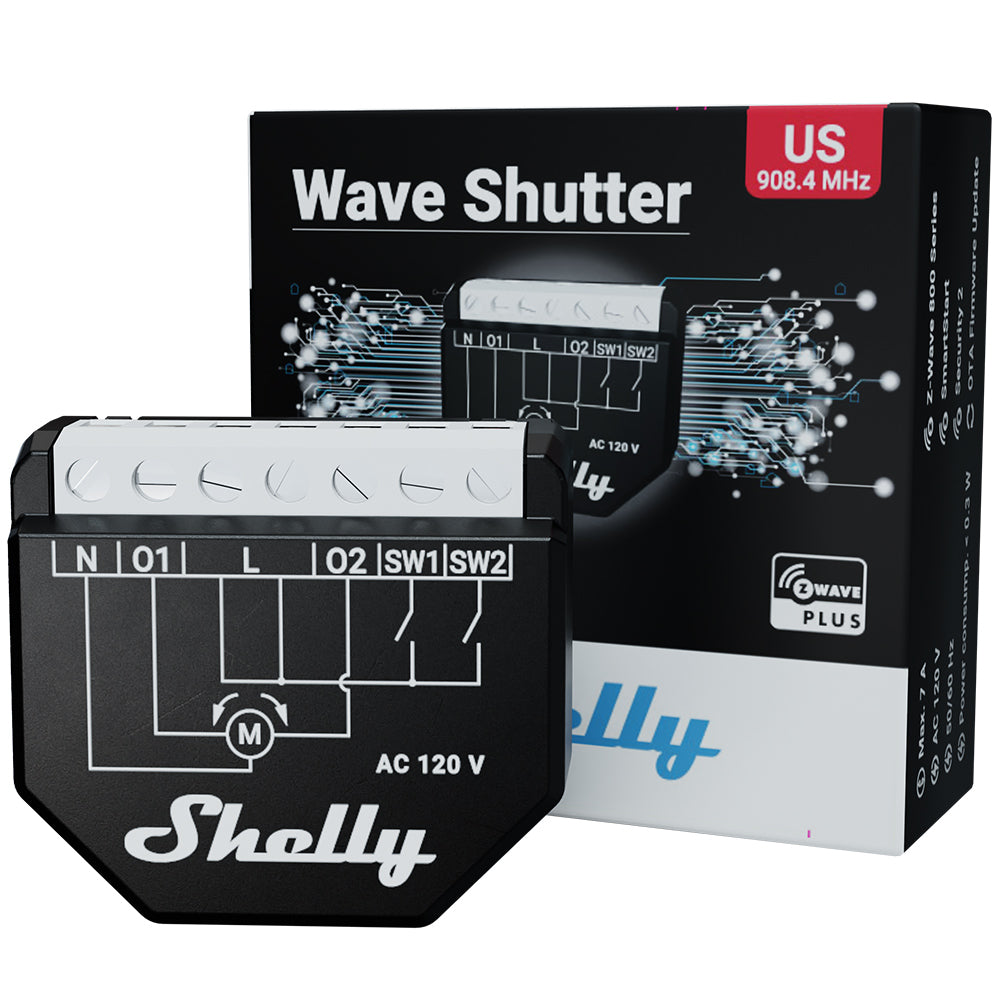

Shelly Wave Shutter UL. Z-Wave smart relay for bi-directional Motors. Tilt control and Power Metering
Shelly Wave Shutter UL. Z-Wave smart relay for bi-directional Motors. Tilt control and Power Metering
SKU:Wave Shutter
Ask for Dealer Price
Shipping to Canada or International? Take advantage of new flat rates.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability
Shelly Wave Shutter - Set the desired position of your blinds, roller shutters, screens, awnings, and other devices powered by bi-directional AC motors from anywhere with this Z-Wave-operated shutter controller.
Shelly Wave Shutter - General Features:
- Control the tilt position (angle) of the venetian blind slats
- Supports push-buttons/momentary switches, and toggle switches
- Power metering
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 908.4 MHz
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
- 3 Years Manufacturer Warranty
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Shelly Wave works on Z-Wave
Z-wave features
-
Bulletproof security
Security 2 (AES128 encryption) for the utmost safety of your Z-Wave network
-
Ultra-low power consumption
Most of the Wave devices operate at less than 0.3W
-
High compatibility
Compatible with all certified Z-Wave devices and gateways available in the market
-
Extended wireless range
Up to 40 m indoor range. Device acts as a Z-Wave signal repeater, extending
the Z-Wave network range -
High reliability
Operates on a sub-GHz frequency, ensuring stable and reliable wireless connection without interference
-
Automatic set-up
SmartStart for automatic inclusion to your Z-Wave network
 |
 |
||
|
|
||
|
|
||
Universally compatibleYou can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Universally compatibleYou can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Specification | Details |
|---|---|
| Power supply | 120 V AC 50/60 Hz |
| Power consumption | < 0.3 W |
| Power measurement [W] | Yes |
| Max. Power per channel | 1/3 hp |
| Max switching voltage AC | 120 V |
| Max switching current AC | 7 A per channel |
| Overheating protection | Yes |
| Overcurrent protection | Yes |
| Overvoltage protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave® repeater | Yes |
| CPU | Z-Wave® S800 |
| Z-Wave® frequencies band(s) | 908.4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 37x 42x16 ± 0.5 mm / 1.46x1.65x0.63 ± 0.02 in |
| Weight | 29 g / 1.02 in |
| Mounting | Wall console |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
