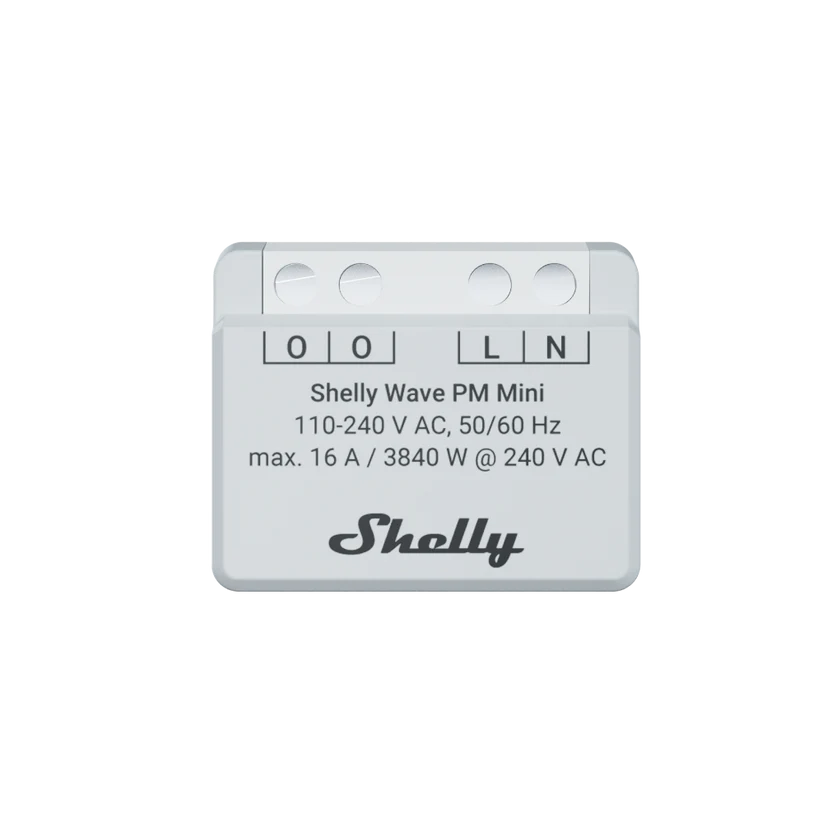

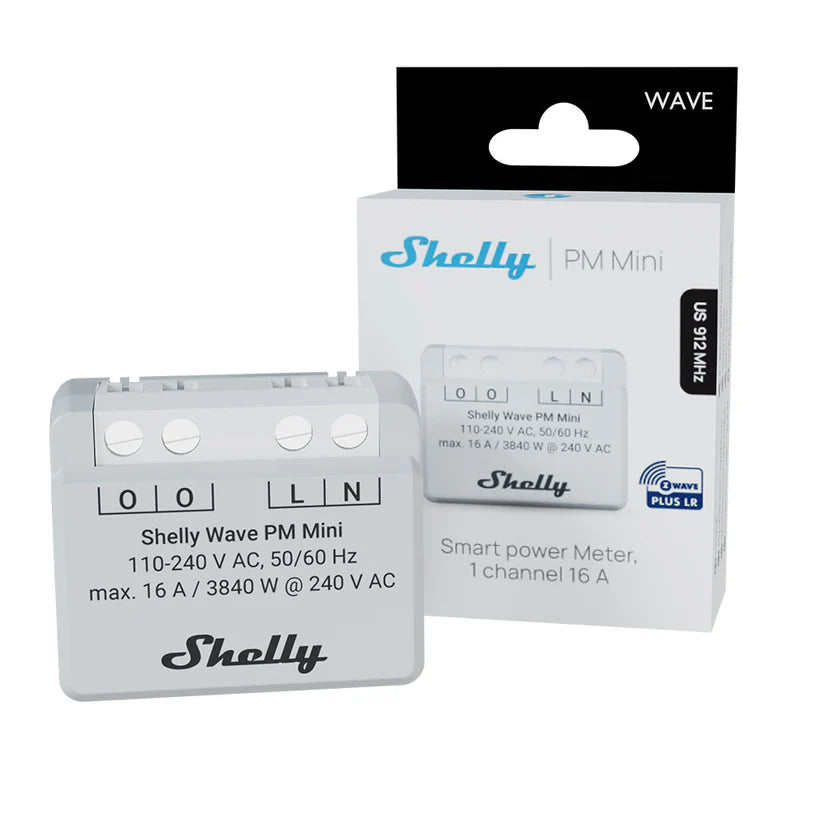

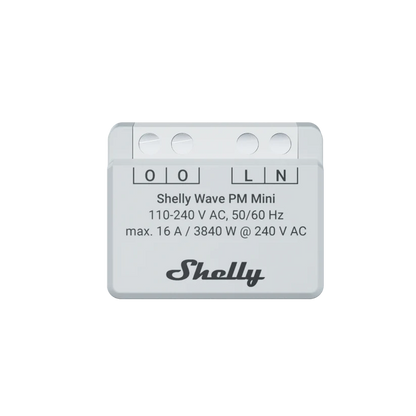

Shelly Wave PM Mini US LR. Wave Long Range Smart Metering Mini Relay (16 A)
Shelly Wave PM Mini US LR. Wave Long Range Smart Metering Mini Relay (16 A)
SKU:Wave PM Mini LR US
Ask for Dealer Price
Shipping to Canada or International? Take advantage of new flat rates.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability
Compact and powerful, this device monitors energy use even in tight spaces—now with Z-Wave Long Range for extended wireless coverage and improved network reliability.
A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
3 Years Manufacturer Warranty
Key Features Shelly Wave PM Mini US LR
- Supports up to 16 A at 240 V AC
- Power measurement
- Z-Wave frequency: 912 MHz (ZWLR) & 908.4 MHz (Z-Wave Plus)
- Energy efficient: uses only up to 0.3 W of power
- Latest technology: Z-Wave 800 Series
- Easy set up with SmartStart - just scan and go
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates
- Fast and simple installation in most standard electrical boxes and switches
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Shelly Wave works on Z-Wave
Z-wave features
-
Bulletproof security
Security 2 (AES128 encryption) for the utmost safety of your Z-Wave network
-
Ultra-low power consumption
Most of the Wave devices operate at less than 0.3W
-
High compatibility
Compatible with all certified Z-Wave devices and gateways available in the market
-
Extended wireless Long Range
Up to 80 m indoor range. Device acts as a Z-Wave signal repeater, extending
the Z-Wave network range -
High reliability
Operates on a sub-GHz frequency, ensuring stable and reliable wireless connection without interference
-
Automatic set-up
SmartStart for automatic inclusion to your Z-Wave network
Universally compatibleYou can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Universally compatibleYou can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
| Power supply | 110 - 240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0,3 W |
| Power measurement (W) | Yes |
| External protection | 16 A, tripping characteristic B or C; 6 kA interrupting rating; Energy limiting class 3 |
| Max. measurement power | 3840 W |
| Max. measurement current | 16 A |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave® repeater | Yes |
| CPU | Z-Wave® S800 |
| Z-Wave® frequency bands | 908.4 MHz |

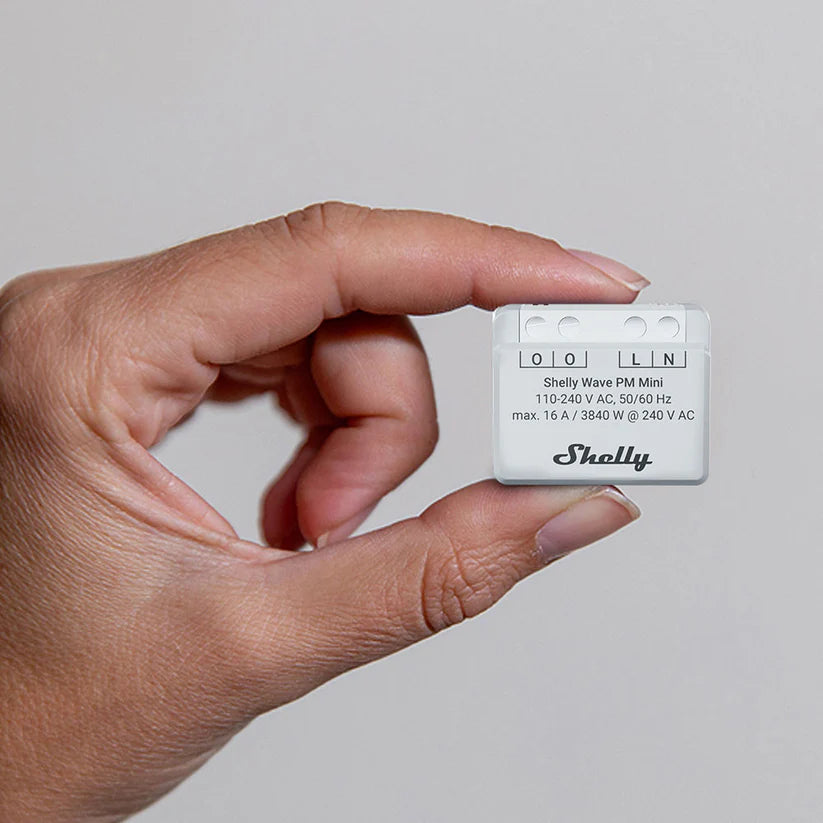

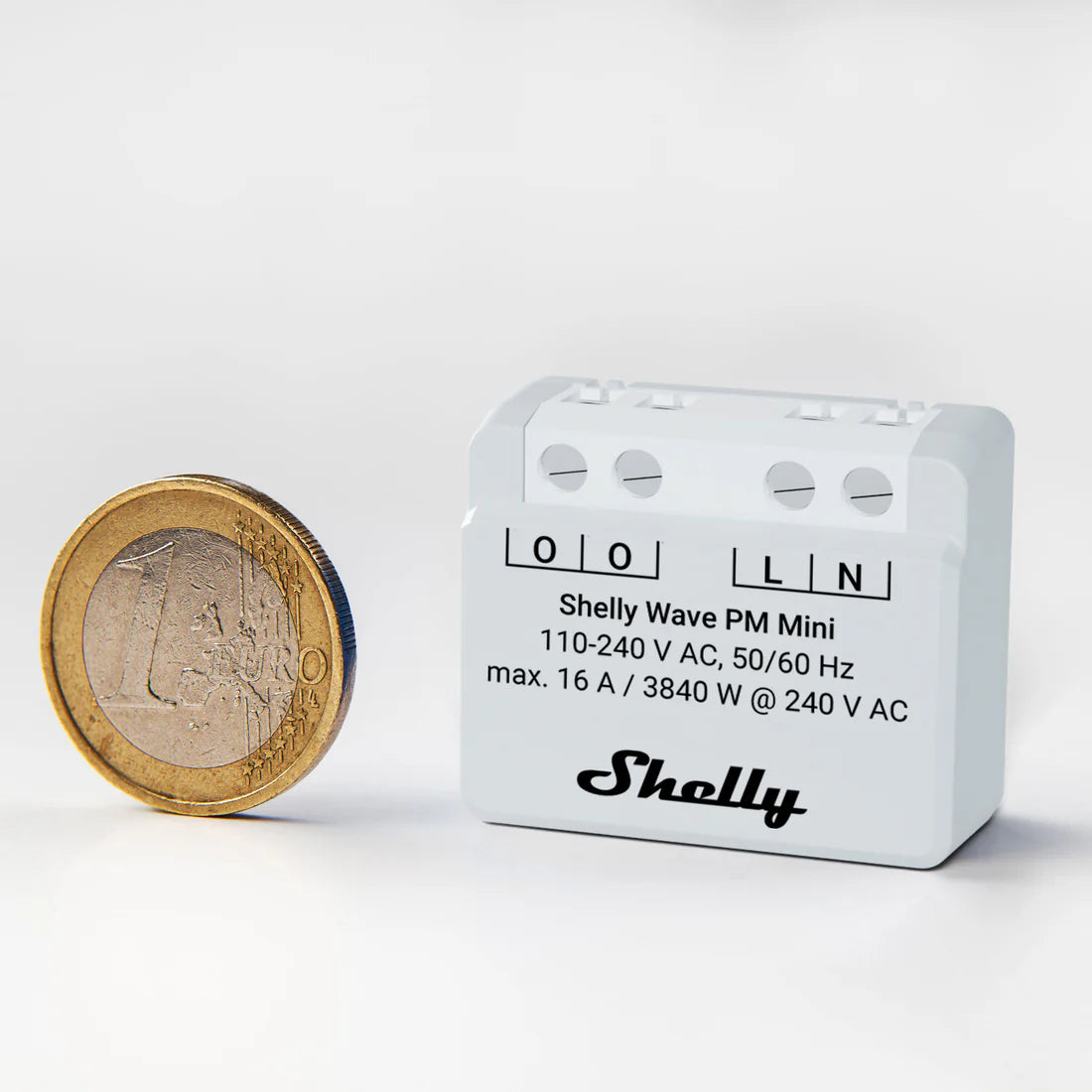

| Size (H × W × D) | 29 × 35 × 16 ± 0.5 mm / 1.11 × 1.35 × 0.63 ± 0.02 in |
| Weight | 13 ± 1 g / 0.46 ± 0.04 oz |
| Mounting | In‑wall box |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Shell material | Plastic |
| Color | Light grey |
| Ambient temperature | −20 °C to 40 °C / −5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft. |
