• Shelly Wave i4 DC US Z-Wave 800 Scene Controller with Long Range
  • Shelly Wave i4 DC Long range
  • Shelly Wave i4 DC Long range
  • Shelly Wave i4 DC Long range
1 4

Shelly

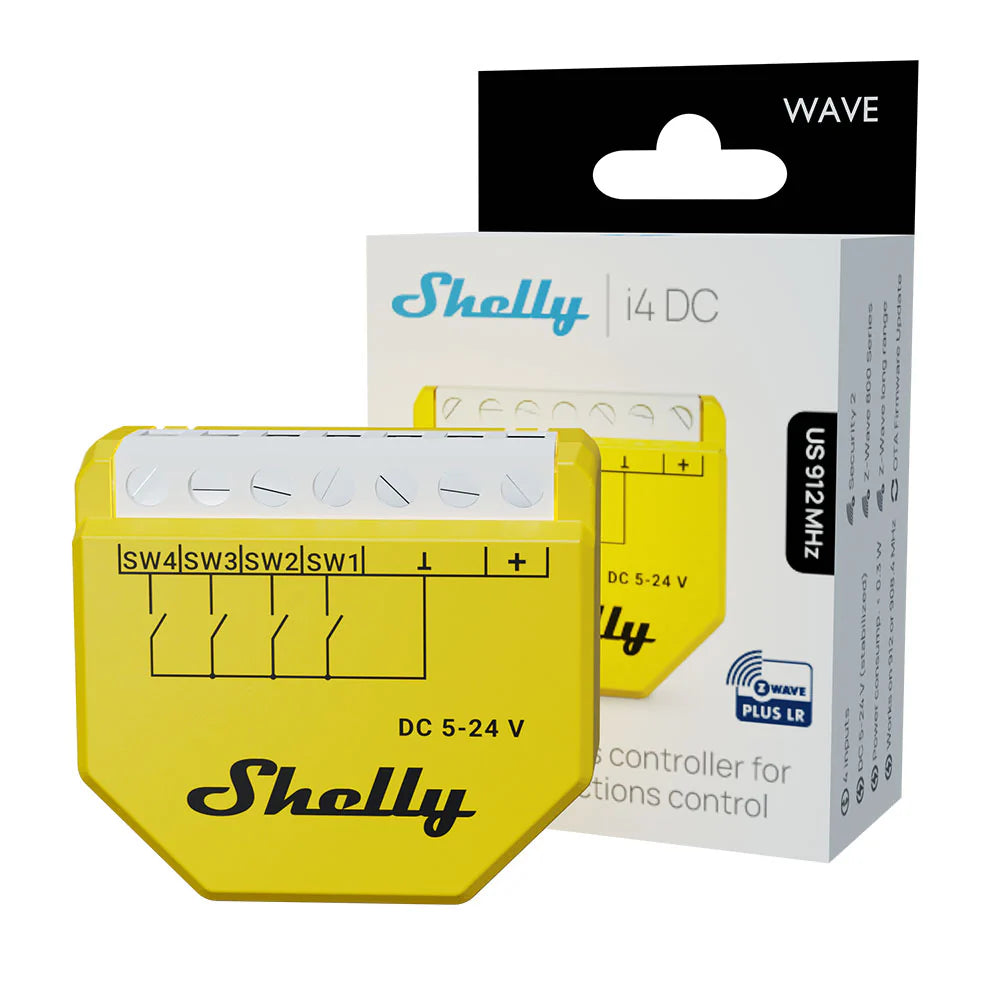

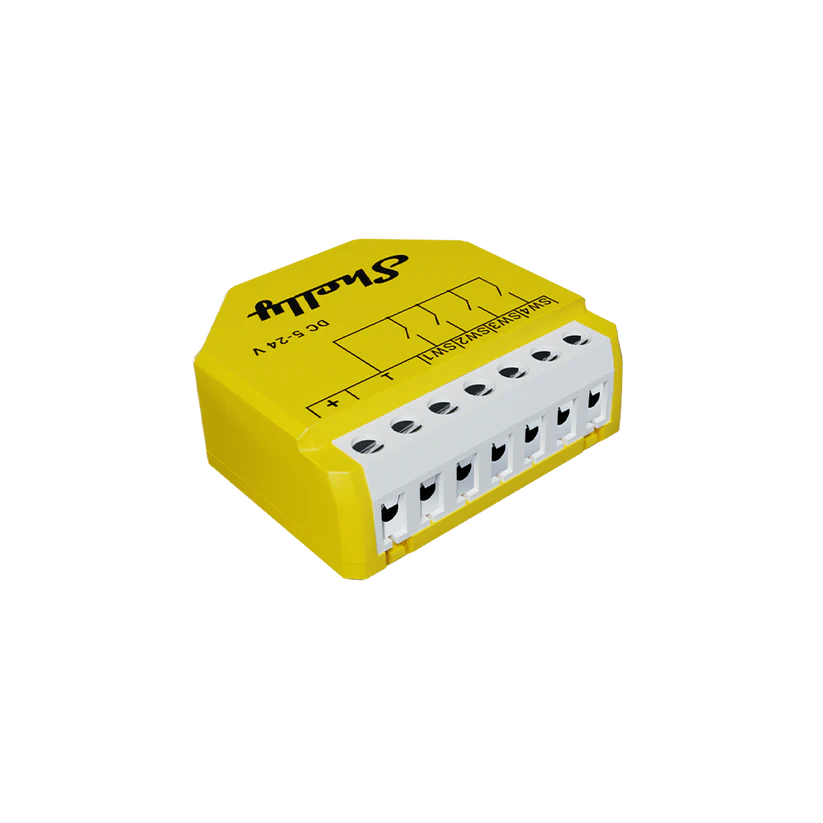

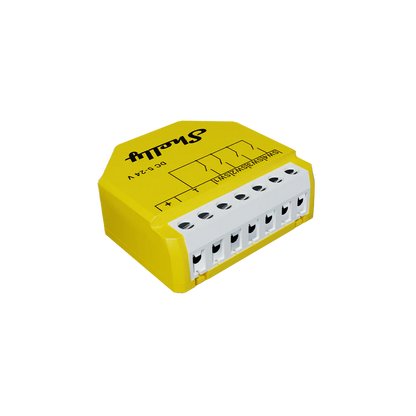

Shelly Wave i4 DC LR. Z-Wave Long Range 800 Scene Controller

Shelly Wave i4 DC LR. Z-Wave Long Range 800 Scene Controller

Wave i4 DC LR US

Ask for Dealer Price
$32.99 USD
$32.99 USD $32.99 USD
Sale Sold out
Shipping calculated at checkout.
Retail: Get Free Shipping using code FREESHIP at checkout on orders from USD 100 (for US Continental, exclusions applies*).
Shipping to Canada or International? Take advantage of new flat rates.
(*)See terms & conditions

Need more quantity? We have it! Contact us and we will get it for you
100% Secure Payments

Easily control scenes, trigger complex events, or run synced actions with a single button. Now with Z-Wave Long Range for greater coverage and reliability.

3 Years Manufacturer Warranty

Key Features Shelly Wave I4 DC LR

  • Shelly Wave i4 DC is an input reader device (it does not contain relays)
  • Manually control other Z-Wave devices (e.g. with a multi-button switch)
  • Multi-click – activation of up to 16 actions
  • Supports Z-Wave Long Range - maintains a strong connection over distances exceeding 1 mile (line of sight)
  • Energy efficient: uses only up to 0.2 W of power
  • Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz (Z-Wave Plus)
  • Latest Z-Wave 800 series
  • Easy set up with SmartStart - just scan and go
  • Top level Security, S2 authenticated
  • Supports OTA firmware updates

*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.

View full details

Use Cases

  • Multi-Room Lighting Control

    Use the Shelly Wave i4 DC US to control lighting scenes across multiple rooms with a single multi-button switch, simplifying your smart home setup.

  • Garage Door Triggering

    Activate or monitor garage doors through your Z-Wave network by sending input signals from a wall-mounted button connected to the Wave i4 DC.

  • Smart Security Modes

    Switch between security modes (home, away, night) with a multi-click action, keeping your home protected with one convenient controller.

  • HVAC Scene Selection

    Easily trigger heating or cooling presets, such as energy-saving or comfort modes, using simple button combinations linked to your HVAC system.

  • All-Off Automation

    Create an “all-off” scene to turn off lights and appliances throughout the house when leaving, using a single button to send commands via Z-Wave.

Functionalities

  • Z-Wave operated

    Include the device to your Z-Wave network and control it remotely.

  • Multi-click support​

    Up to 16 possible actions. Control the lights, close the blinds, turn off outlets. Manually control any Z-Wave device within your network and run the scenes you desire.

  • Smart Scenes

    Set custom scenes by combining the device with your other Shelly Wave devices (gateway required).

  • Wide range of voltage support​

    The device can be powered by 5 – 24 DC.

  • Z-Wave Long Range

    The range of the device is exceeding 1 mile (line of sight). ZWLR works as a star network.

  • Retrofit device​

    Intended to be installed behind existing wall switches, enabling smart control without changing wiring or switch layout.

Shelly Wave works on Z-Wave

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
Shelly Wave devices work with over 4000 Z-Wave certified devices and gateways

*Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org

Z-wave features

  • Security z-wave

    Bulletproof security

    Security 2 (AES128 encryption) for the utmost safety of your Z-Wave network

  • ultra low power consumption

    Ultra-low power consumption

    Most of the Wave devices operate at less than 0.3W

  • high compatibility

    High compatibility

    Compatible with all certified Z-Wave devices and gateways available in the market

  • Extended wireless Long Range

    Up to 80 m indoor range. Device acts as a Z-Wave signal repeater, extending
    the Z-Wave network range

  • wifi icon

    High reliability

    Operates on a sub-GHz frequency, ensuring stable and reliable wireless connection without interference

  • Set up icon

    Automatic set-up

    SmartStart for automatic inclusion to your Z-Wave network

Universally compatible

You can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.

 Shelly App
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms

Universally compatible

You can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.
Shelly App
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Technical Specifications
Power supply AC 12V DC
Power supply DC Yes
Dry contacts Yes
Inputs 4
Operational temperature 0°C to +40°C
Radio protocol Z-Wave
Radio frequency 908.4 MHz (US); 912 MHz (Z-Wave LR)
Range Up to 40m indoors / 50m outdoors (depending on local conditions)

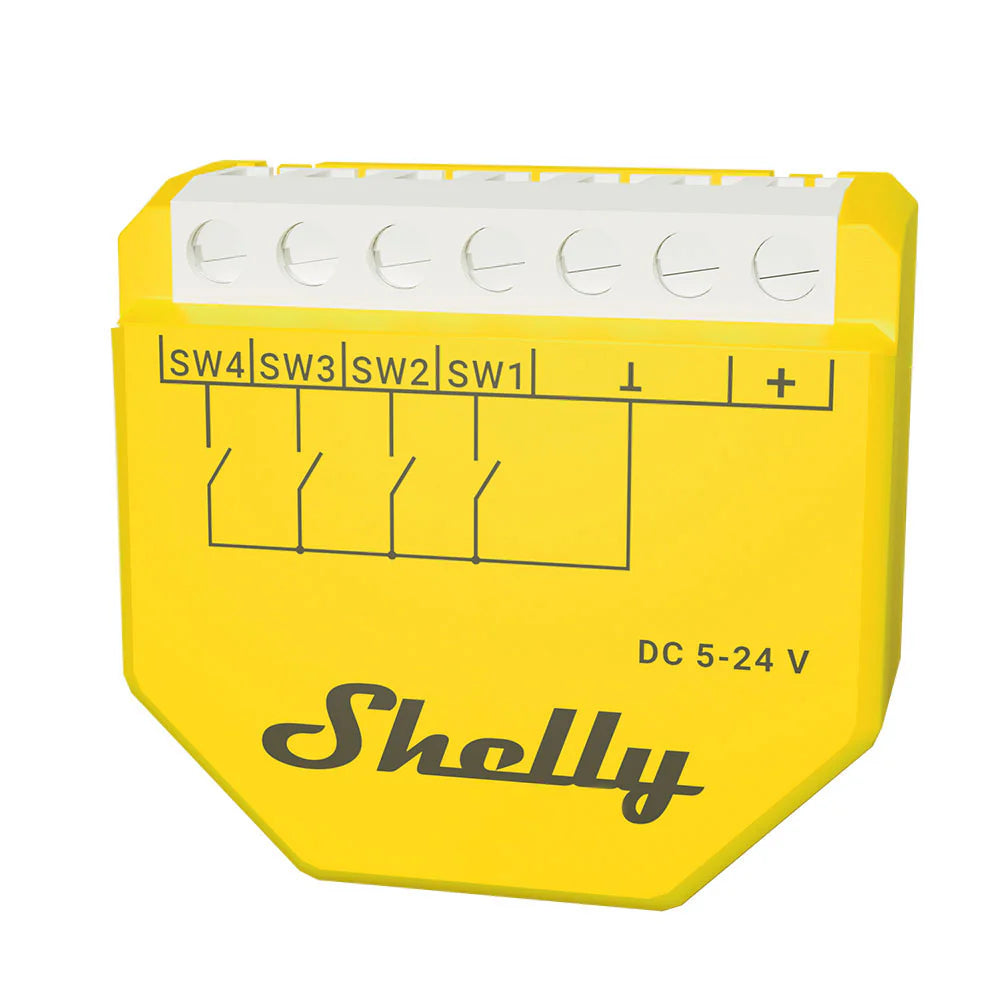

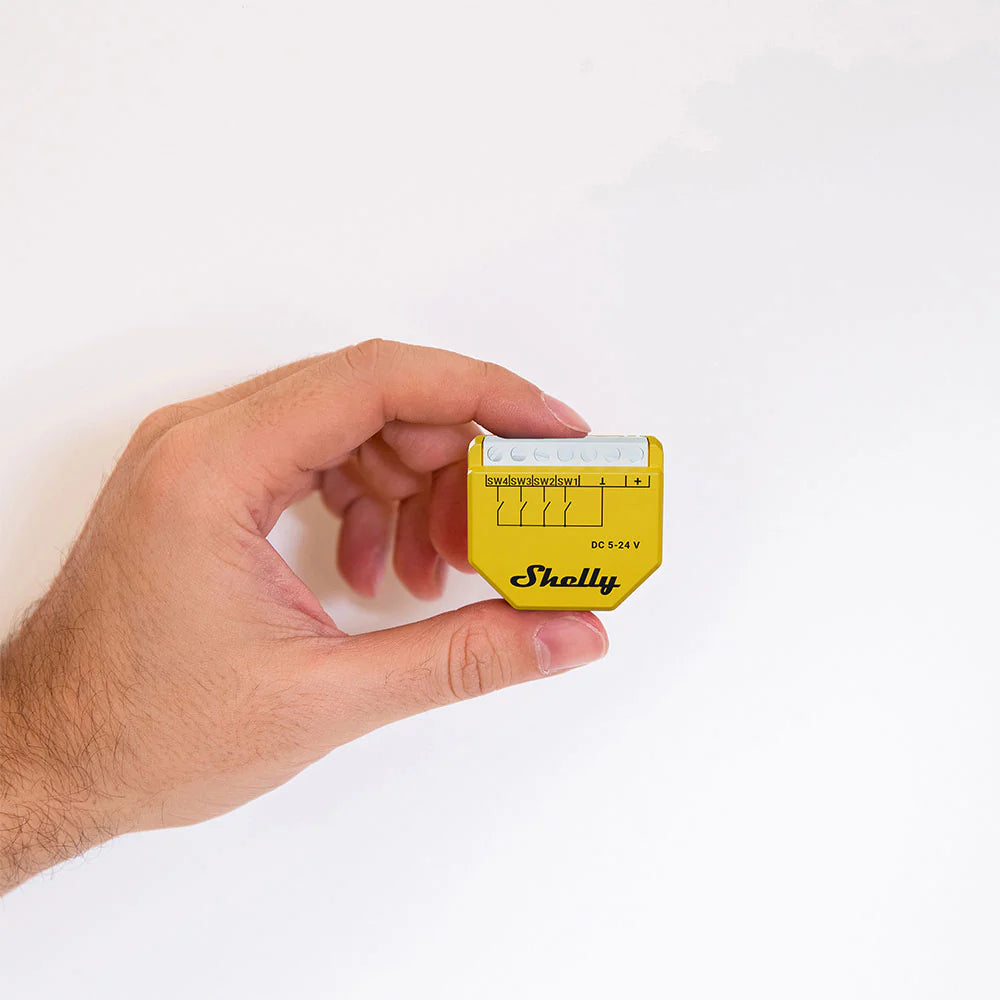

Dimensions 42 x 38 x 17 mm

Warranty

  • USA Pro Market Manufacturer Warranty: Lifetime manufacturer warranty (only if installed by a professional within USA) when purchased at Digital Bay Tech.

  • Retail Standard Manufacturer Warranty (included in purchase price): 2, 3 or 5 years manufacturer warranty covers only the hardware (corpus, mechanics, and display, if any) and does not cover consumables (battery) and accessories insofar as these are subject to exhaustion (decrease of their useful life) depending on the intensity of their use. Device malfunctions are only covered when device is used as described conditions within user manual (max loads, proper installation, etc.). Please check refund policy for further details.
  • Gen 1: 2 years.
  • Plus, Gen3, Gen4, Wave: 3 years.
  • Pro Line: 5 years.

Special Notes

  • Do It Yourself: Devices are technically user-installable in many locales, nevertheless consulting a licensed electrician to install shelly components is recommended; in addition to being licensed to work with electrical devices, they are also familiar with local building codes and regulations to keep your safety.
  • Manufacturer's Safety note: Each Shelly device generates heat under load. Do not combine two or more Shelly devices stacked on top of or beside each other in a confined space. There must be a minimum distance of 0.4 inch / 1 cm between them to allow for airflow.
