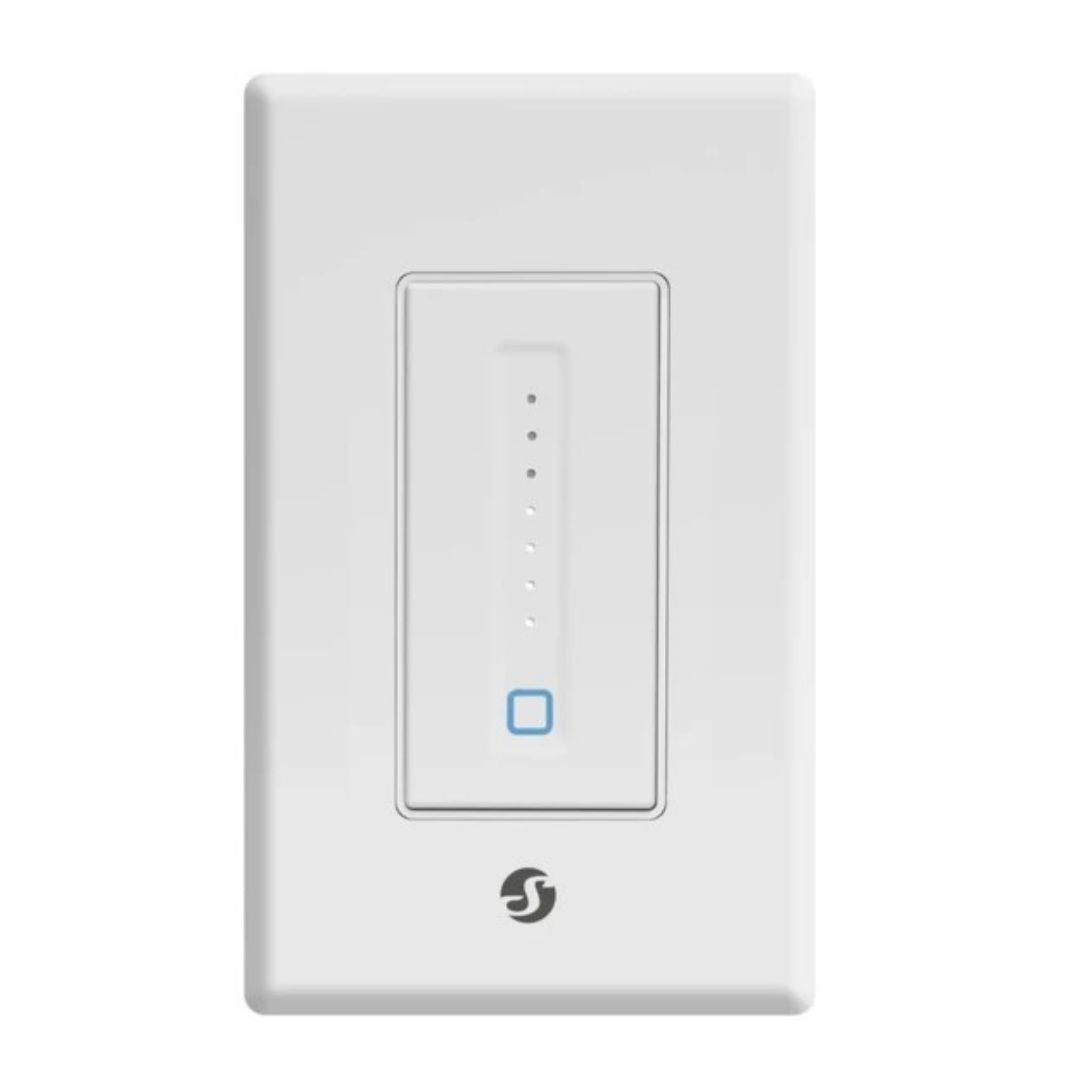

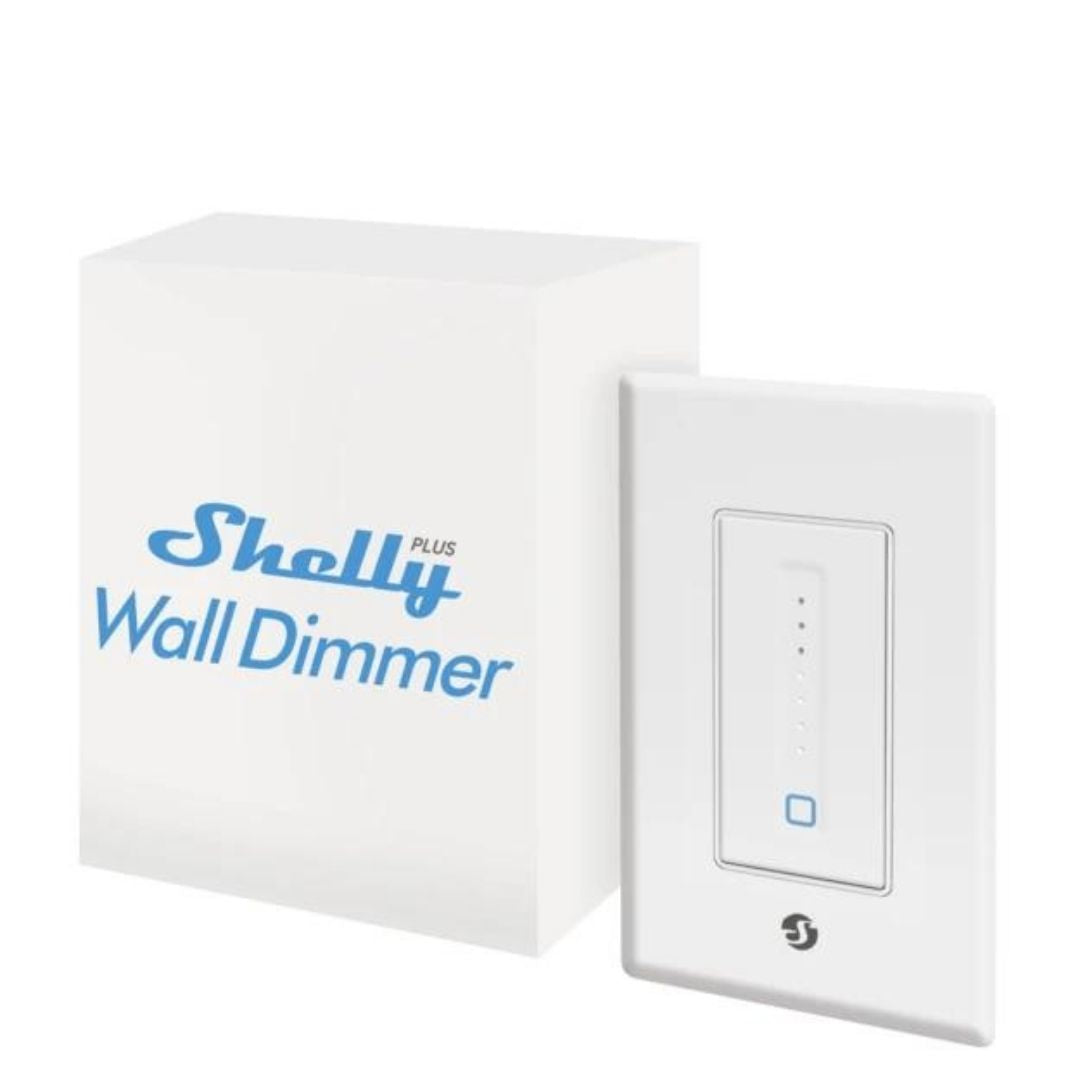

Shelly Plus Wall Dimmer UL Certified. Next-Generation Wi-Fi Smart Wall Dimmer, Simple 4-wire design

Shelly Plus Wall Dimmer UL Certified. Next-Generation Wi-Fi Smart Wall Dimmer, Simple 4-wire design

SKU:Plus Wall Dimmer

Ask for Dealer Price

Regular price $19.85 USD
Regular price $19.85 USD Sale price $19.85 USD
Sale Sold out
Shipping calculated at checkout.
Retail: Get Free Shipping using code FREESHIP at checkout on orders from USD 75 (for US Continental, exclusions applies*).
Shipping to Canada? Write us for a customs estimation.

(*)See terms & conditions

Need more quantity? We have it! Contact us and we will get it for you

100% Secure Payments

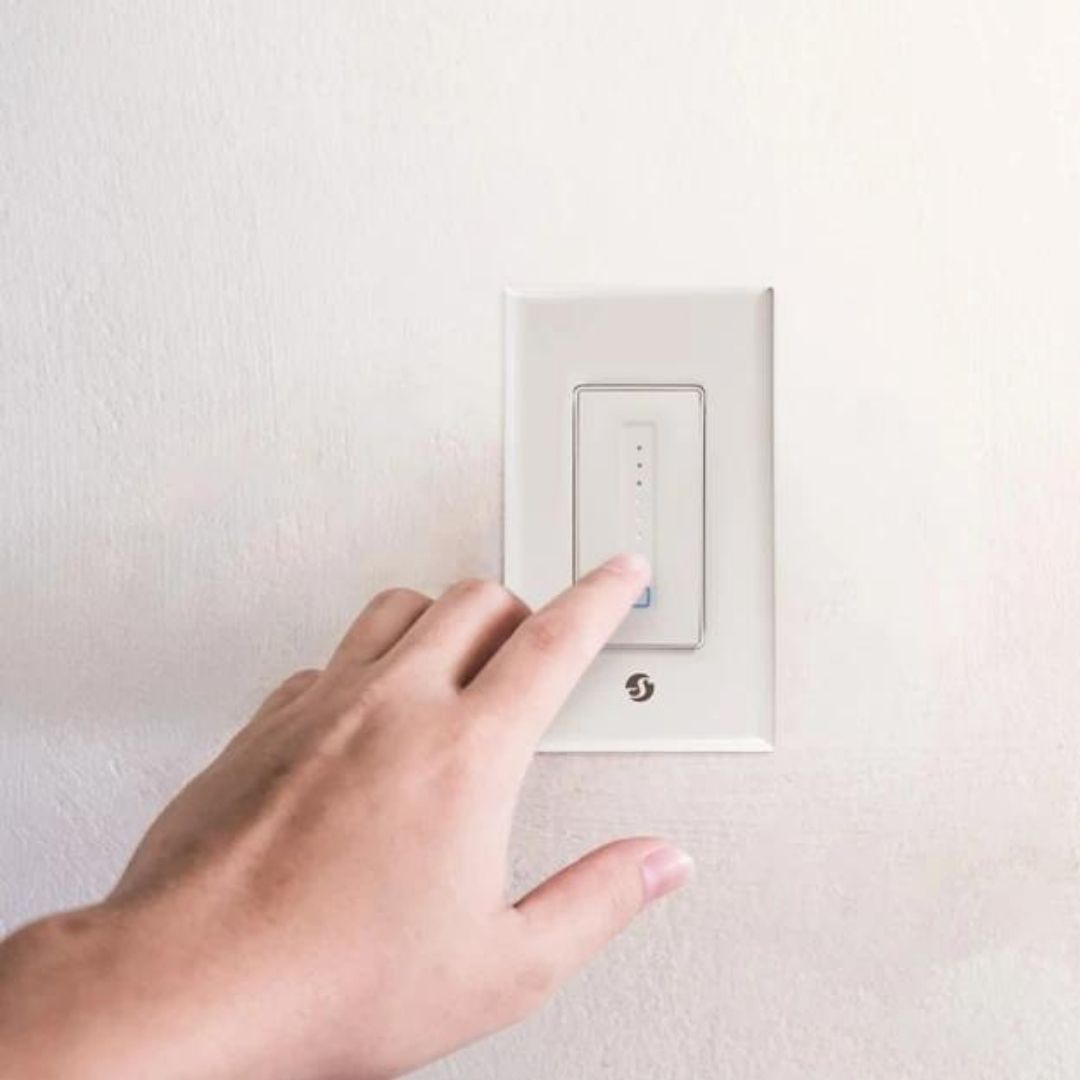

With sleek styling and an intuitive touch slider for dimming and brightening, the new Shelly Plus Wall Dimmer is UL-certified and functions as a standalone device or integrated into virtually any control or automation platform connected directly to Wi-Fi.

UL Certified, Next-Generation Wi-Fi Wall Dimmer

Embedded webserver

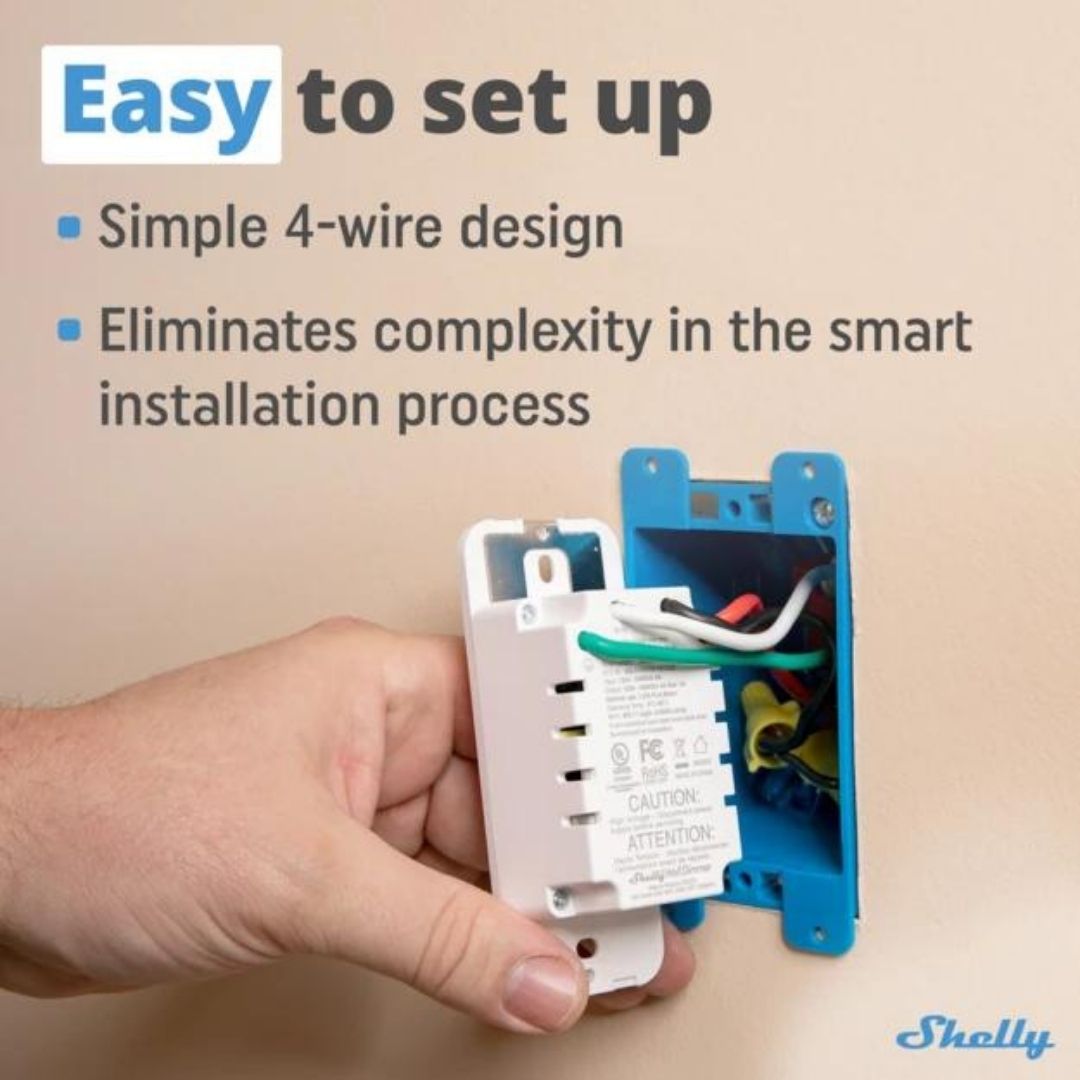

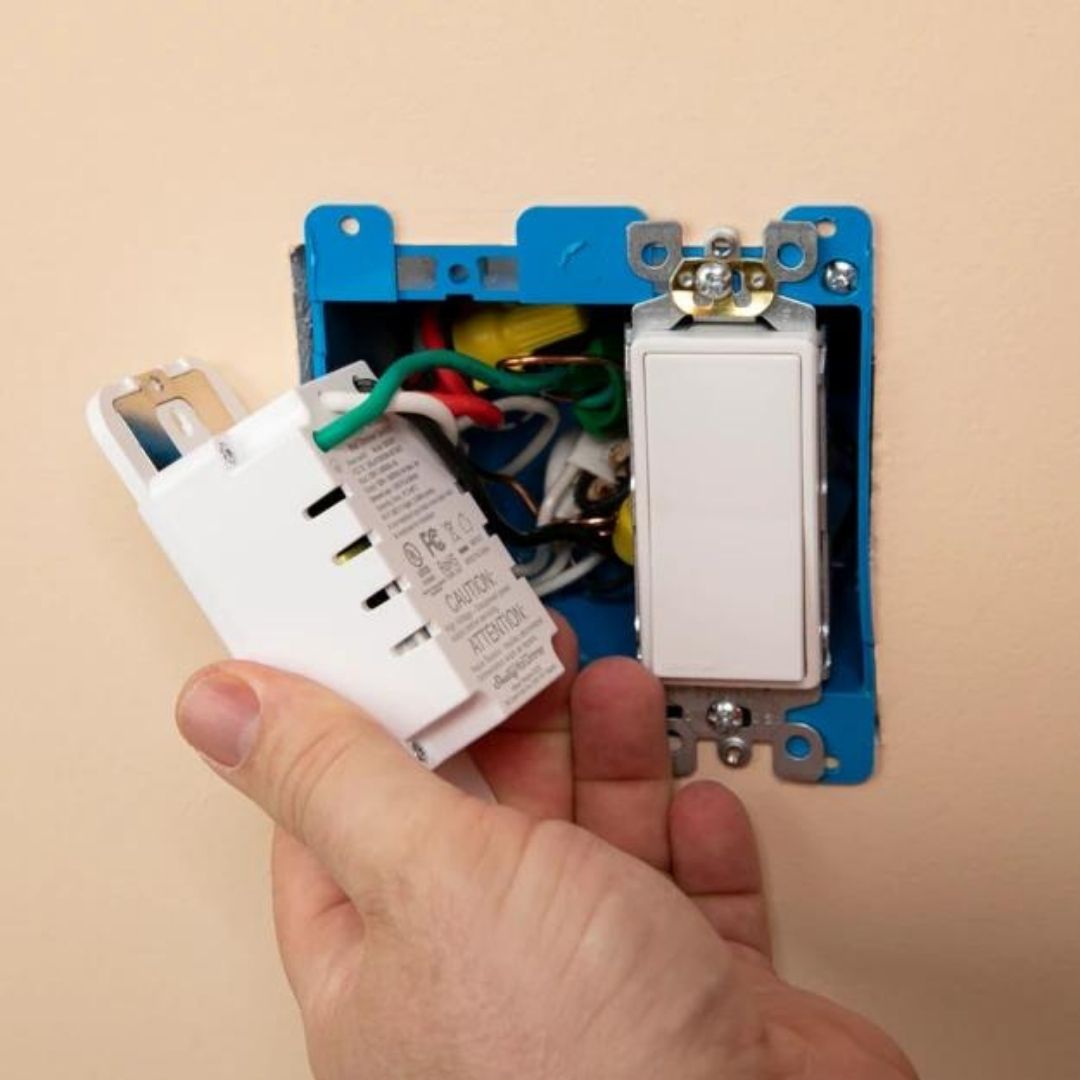

Can function as a standalone device, as an accessory to a home automation controller, or may be used as another automation system's component. Simple 4-wire design, with quick Bluetooth inclusion and automatic calibration, Shelly Plus Wall Dimmer saves integrators valuable time and eliminates complexity in the smart home installation process.

View full details
Functionalities

Functionalities

No hub required, Universally compatible

Shelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.

Shelly App
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms

No hub required, Universally compatible

Shelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.

Shelly App
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Specifications

TypeValue
Physical
Size without face plate and wires (HxWxD):104x44x39 ±0.5 mm / 4.09 x 1.73 x 1.50 ±0.02 in
Size with face plate and without wires (HxWxD):120x70x39 ±0.5 mm / 4.72 x 2.76 x 1.50 ±0.02 in
Weight without face plate:105 g / 3.70 oz
Weight with face plate:121 g / 4.28 oz
Shell material:ABS
Color:White
Environmental
Ambient temperature:-20 °C to 40 °C / -5 °F to 105 °F
Humidity30 % to 70 % RH
Max. altitude2000 m / 6562 ft
Electrical
Power supply voltage AC:100 - 120 V, 50/60 Hz
Power supply voltage DC:N/A
Power consumption:< 3 W
Output circuits ratings
Max load power at 120 VAC:
  • 400 W (incandescent)
  • 150 W (dimmable only LED and CFL)
Radio
RF band:2400 - 2495 MHz
Max. RF power:<20 dBm
Wi-Fi protocol:802.11 b/g/n
Wi-Fi Range:Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth Protocol:4.2
Bluetooth Range:Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
MCU
CPU:ESP32
Flash:4 MB
Firmware capabilities
Webhooks (URL actions):20 with 5 URLs per hook
Scripting:mJS
MQTT:Yes
CoAP:No

Collapsible content

Warranty

  • USA Pro Market Manufacturer Warranty: Lifetime manufacturer warranty (only if installed by a professional within USA)

  • Retail Standard Manufacturer Warranty (included in purchase price): 2 years manufacturer warranty covers only the hardware (corpus, mechanics, and display, if any) and does not cover consumables (battery) and accessories insofar as these are subject to exhaustion (decrease of their useful life) depending on the intensity of their use. Device malfunctions are only covered when device is used as described conditions within user manual (max loads, proper installation, etc.). Please check refund policy for further details.

Special Notes

  • Do It Yourself: Devices are technically user-installable in many locales, nevertheless consulting a licensed electrician to install shelly components is recommended; in addition to being licensed to work with electrical devices, they are also familiar with local building codes and regulations to keep your safety.
  • Manufacturer's Safety note: Each Shelly device generates heat under load. Do not combine two or more Shelly devices stacked on top of or beside each other in a confined space. There must be a minimum distance of 0.4 inch / 1 cm between them to allow for airflow.
