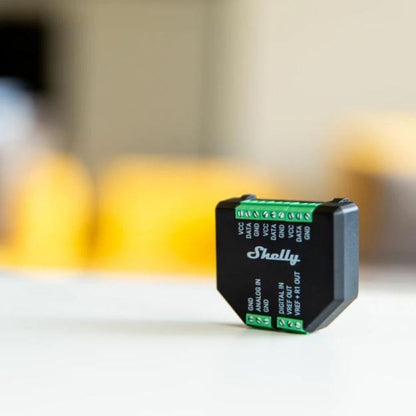

Shelly Plus AddOn. For Shelly Plus devices, use DS18B20, DHT22 sensors, analog and digital input.
Shelly Plus AddOn. For Shelly Plus devices, use DS18B20, DHT22 sensors, analog and digital input.
SKU:Plus Add-on
Regular price
$13.50 USD
Regular price
$13.50 USD
Sale price
$13.50 USD
Unit price
per
Shipping calculated at checkout.
Ask for Dealer Price
Retail: Get Free Shipping using code FREESHIP at checkout on orders from USD 75 (for US Continental, exclusions applies*).Shipping to Canada? Write us for a customs estimation.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability

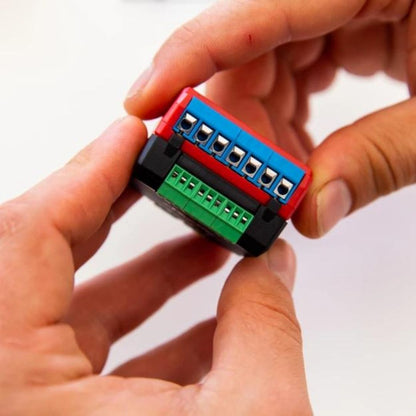

Add-on for Shelly Plus devices
- Can be used with up to five DS18B20 sensors or one DHT22 sensor
- Has an analog and a digital input
- DS18B20 - Temperature sensor only (up to 5)
- DHT22 sensor - Use to monitor temperature and humidity
Highly compatible
Shelly Plus Add-on is compatible with most Arduino sensors! Use its digital or analog inputs to measure your desired parameters and create complex automation scenes based on the sensor data.
Note:
Suitable for Shelly Plus models. Sensors not included, sold separately.
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
 |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
| Physical | |
|---|---|
| Size (HxWxD): | 37x42x15 ±0.5 mm / 1.46 x 1.65 x 0.59 ±0.02 in |
| Weigh: | 105 g / 3.70 oz |
| Shell material: | Plastic |
| Color: | Black |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply voltage AC: | N/A |
| Power supply voltage DC: | 3.3 V (from Shelly plus device) |
| Power consumption: | < 0.5 W (without sensors) |
| Output circuits ratings | |
| VCC max. current: | 10 mA |
| VREF OUT max. current: | 1 mA |
| Shelly Plus device firmware capabilities | |
| Shelly Plus Addon supporting devices: | Shelly Plus 1/1PM, Shelly Plus 2PM, Shelly Plus i4/i4DC |
| Temperature reading: | Depends on the DS18B20 or DHT22 sensors |
| Humidity reading: | Depends on the DHT22 sensor |
| Digital input: | -15 V to 0.5 V (True) / 2.5 V to 15 V (False)* |
| Analog input range: | 0 to 100% |
| Analog input report threshold: | 1%** |
| Voltmeter range: | 0 to 10 V |
| Voltmeter report threshold: | 0.1 V** |
| Analog input / Voltmeter accuracy | Better that 5% |
