Shelly
Shelly Plus 2 PM UL. One-phase, two channel smart relay with power consumption supporting up to 10A per channel and 16A total current (18A peak).
Shelly Plus 2 PM UL. One-phase, two channel smart relay with power consumption supporting up to 10A per channel and 16A total current (18A peak).
SKU:Plus 2 PM -1 UL
Ask for Dealer Price
Shipping to Canada? Write us for a customs estimation.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability
Shelly Plus 2 PM UL is Smart Relay with power Consumption. One device - Different possibilities.
One-phase, two channel smart relay supporting up to 10A per channel and 16A total current (18A peak).
Automate lights and monitor their real-time power consumption.
Shelly Plus 2 PM UL - Specifications:
• Wi-Fi operated - Connects to your Wi-Fi network. No HUB required!
• Bluetooth - Add devices quick and easy via Bluetooth
• 2 channels on the same phase
• Power metering on each channel
• Cover (roller) control - Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors
• Wide range of voltage support
• Scripting, schedules and webhooks
Note: This is the UL Certified version.

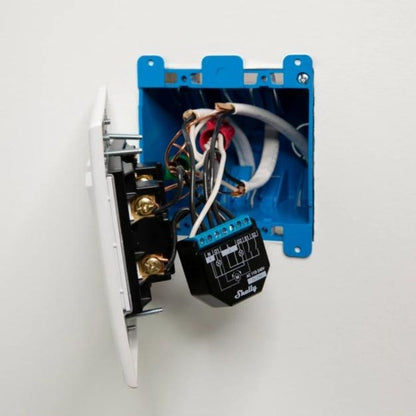

How to Install
How to Install
 |
 |
||
|
|
||
|
|
||
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| POWER | |
|---|---|
| Power supply AC | 110-240V ±10%, 50/60Hz |
| Power supply DC | 24 V ±10%, |
| Channels | 2 channels |
| Max. current per channel | 10A |
| Max. total device current | 16A (18A peak) |
| Max. switching voltage | 240 VAC / 30 VDC |
| SPECIAL FUNCTIONS | |
| Dry contacts | No |
| Cover (roller) control | Yes, with position control- roller shutters, blinds, awnings, curtains, gates, shades, sliding door, garage door, bi-directional AC motors |
| Overload protection | Yes |
| Power measurement | Yes |
| Overtemperature protection | Yes |
| Working without a neutral line | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to 40°C / -4°F to 104°F |
| Device power consumption | < 1.4 W |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2400 – 2500 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50m / 164ft outdoors and up to 30m / 98ft indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 42 x 38 x 17mm |
