Shelly

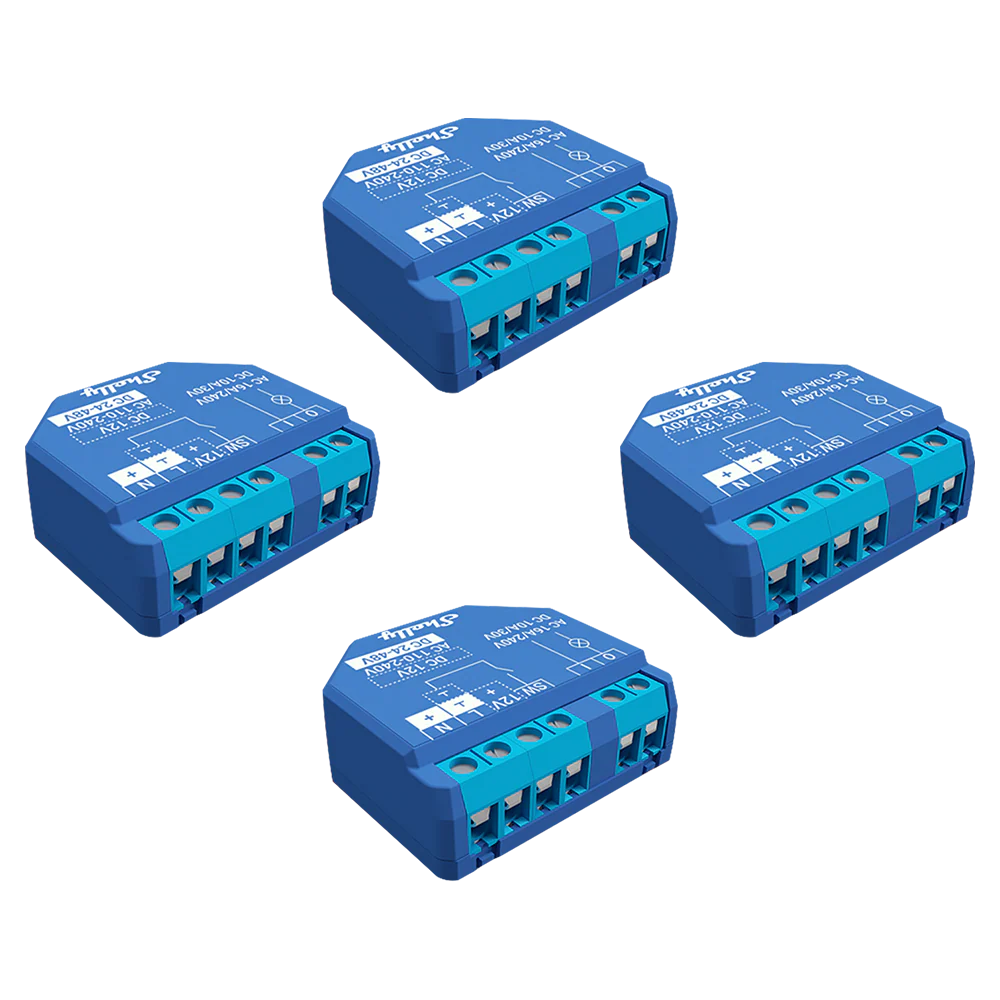

Shelly Plus 1 UL. WiFi Smart Relay Switch 15A, 1 Channel with Dry Contacts, No Hub Required. For Lights, Garage Doors & Automation (Open Box)
Shelly Plus 1 UL. WiFi Smart Relay Switch 15A, 1 Channel with Dry Contacts, No Hub Required. For Lights, Garage Doors & Automation (Open Box)
SKU:Plus 1-1 UL_OB_AN
Condition: Open Box
Open Box units may include manufacturer warranty when applicable and/or a Digital Bay Tech limited replacement warranty for manufacturing defects.
See warranty details below.
Ask for Dealer Price
Shipping to Canada or International? Take advantage of new flat rates.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability
Shelly Plus 1 UL is a WiFi smart relay switch designed for safe and reliable control of lights, garage doors, irrigation systems, HVAC equipment, and other electrical appliances.
This 1-channel 15A smart relay features dry contacts, allowing you to control low-voltage and high-voltage circuits independently. That makes it ideal for garage door openers, alarm panels, thermostats, and other control applications.
Powered by the ESP32 processor, it delivers fast response time, improved API performance, and enhanced security with MQTT, TLS, and custom certificate support.
Small enough to fit behind standard US wall switches, outlets, or inside electrical boxes, Shelly Plus 1 UL enables retrofit smart automation without replacing existing hardware.
No hub required. Connect directly to your WiFi network and manage remotely via app, voice assistants, or automation platforms.
Key Features
- UL Listed (E520661) – Certified for US installations
- 1 Channel, 15A max load
- Dry contact relay output (voltage-free switching)
- WiFi operated – No hub required
- Bluetooth for fast setup and inclusion
- ESP32 processor with improved API
- MQTT, WSS, TLS & custom certificate support
- Over-temperature protection
- Fits standard US electrical boxes
How to Install
How to Install
Functionalities
-
Wi-Fi Operated
Connect Shelly Plus 1 to your Wi-Fi network. No HUB required!
-
Dry contacts
Use it to control a wide range of devices and appliances.
-
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
-
Bluetooth
Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
-
Low and high voltage support
Use a wide range of output voltage levels. Supports low voltages.
-
Smart scenes
Set custom scenes by combining Shelly Plus 1 with your other Shelly devices.
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| POWER | |
|---|---|
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Maximum load | 15A |
| Power supply DC | 24 – 240V / 12V stabilized |
| Channels | 1 Channel |
| SPECIAL FUNCTIONS | |
| Dry contacts | Yes |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | No |
| Power measurement | No |
| Working without a neutral line | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to 40°C / -4°F to 104°F |
| Device power consumption | < 1 W |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| DIMENSIONS | |
| Size | 1.65" x 1.5" x 0.67" / 42 x 38 x 17mm |
