Gen4 devices

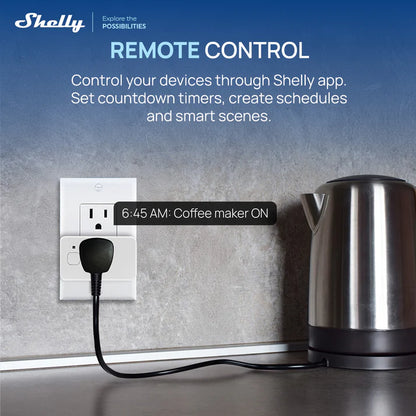

No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*) |
![]() |
||||
![]() |
![]() |
||||
![]() |
![]() |
||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*) |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Specifications
| PHYSICAL | |
|---|---|

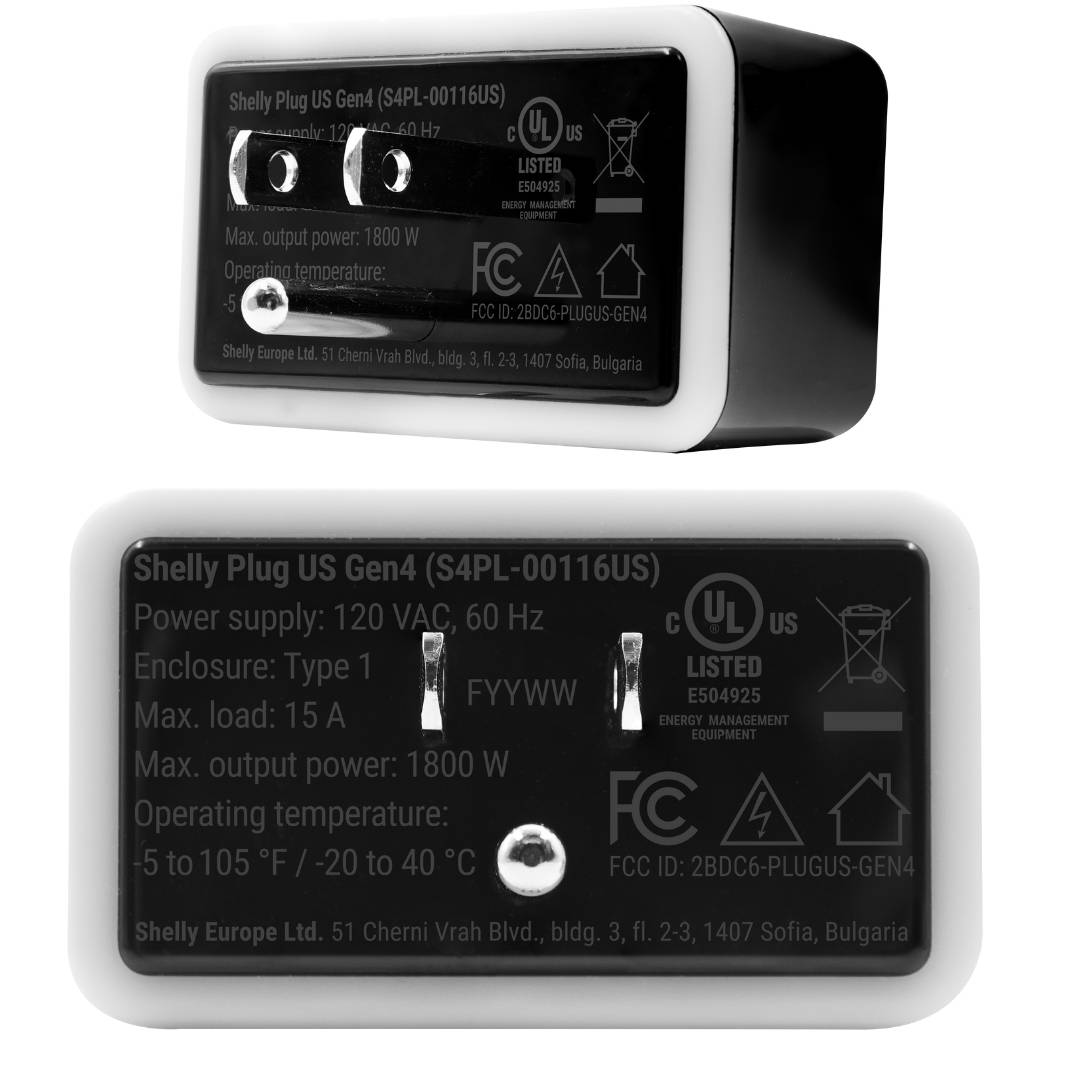

| Model | S4PL-00116US |

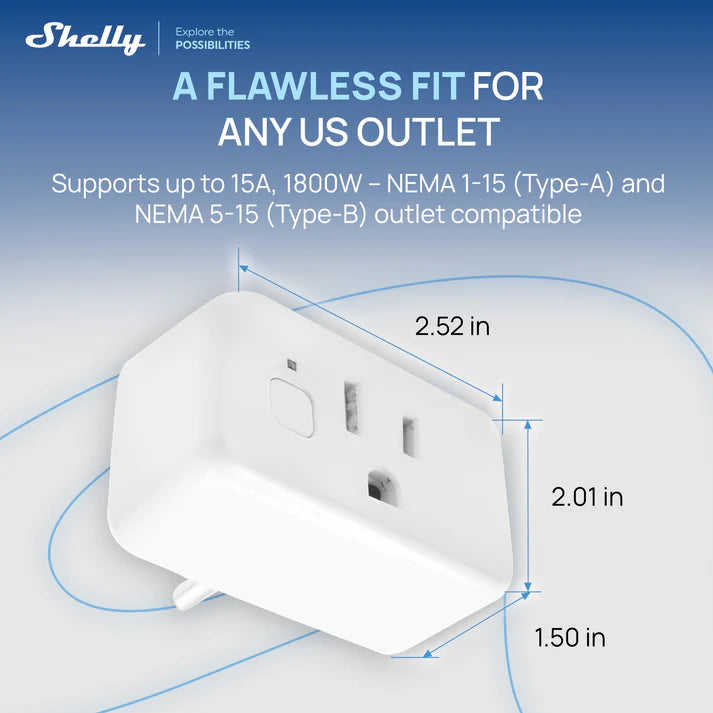

| Size (HxWxD) | 38x64x51 mm / 1.50x2.52x2.01 in |
| Weight | 64 g / 2.25 oz |
| Compatible plugs | NEMA 1-15 (Type A) and NEMA 5-15 (Type B) |
| Compatible sockets | NEMA 5-15 (Type B) |
| Shell material / color | Plastic / White or Black |
| ENVIRONMENTAL | |
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply | 120 V AC, 60 Hz |
| Power consumption | < 1.5 W |
| OUTPUT CIRCUITS RATINGS | |
| Max. switching voltage | 120 V AC |
| Max. switching current | 15 A |
| Max. output power | 1800 W (resistive load only) |
| Number of switching cycles | 10000 |
| SENSORS, METERS | |
| Voltmeter / Ammeter (AC) | Yes / Yes |

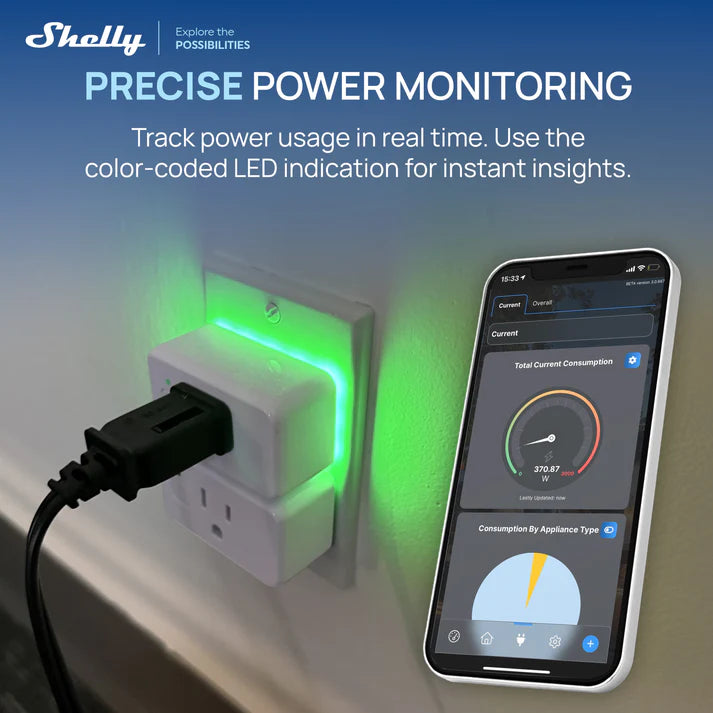

| Power and energy meters | Yes |
| Internal-temperature sensor | Yes |
| Light sensor | Yes |

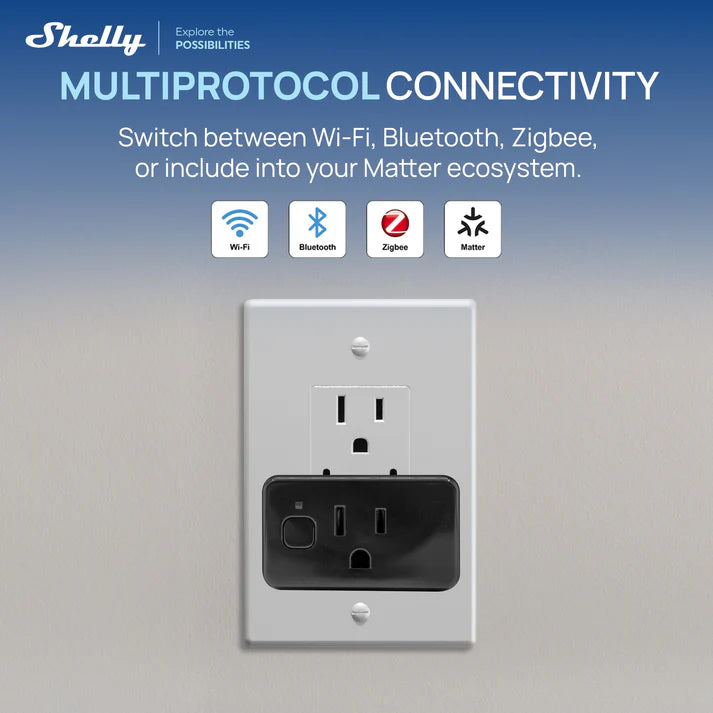

| WI-FI | |
| Protocol | 802.11 b/g/n/ax |
| Range | 30m/100ft indoors, 50m/160ft outdoors |
| BLUETOOTH | |
| Protocol | 5 (LE) |
| Range | 10m/33ft indoors, 30m/100ft outdoors |
| ZIGBEE | |
| Protocol | 802.15.4 |
| Range | 100m/328ft indoors, 300m/984ft outdoors |
| MICROCONTROLLER UNIT | |
| CPU / Flash | ESP-Shelly-C68F / 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
