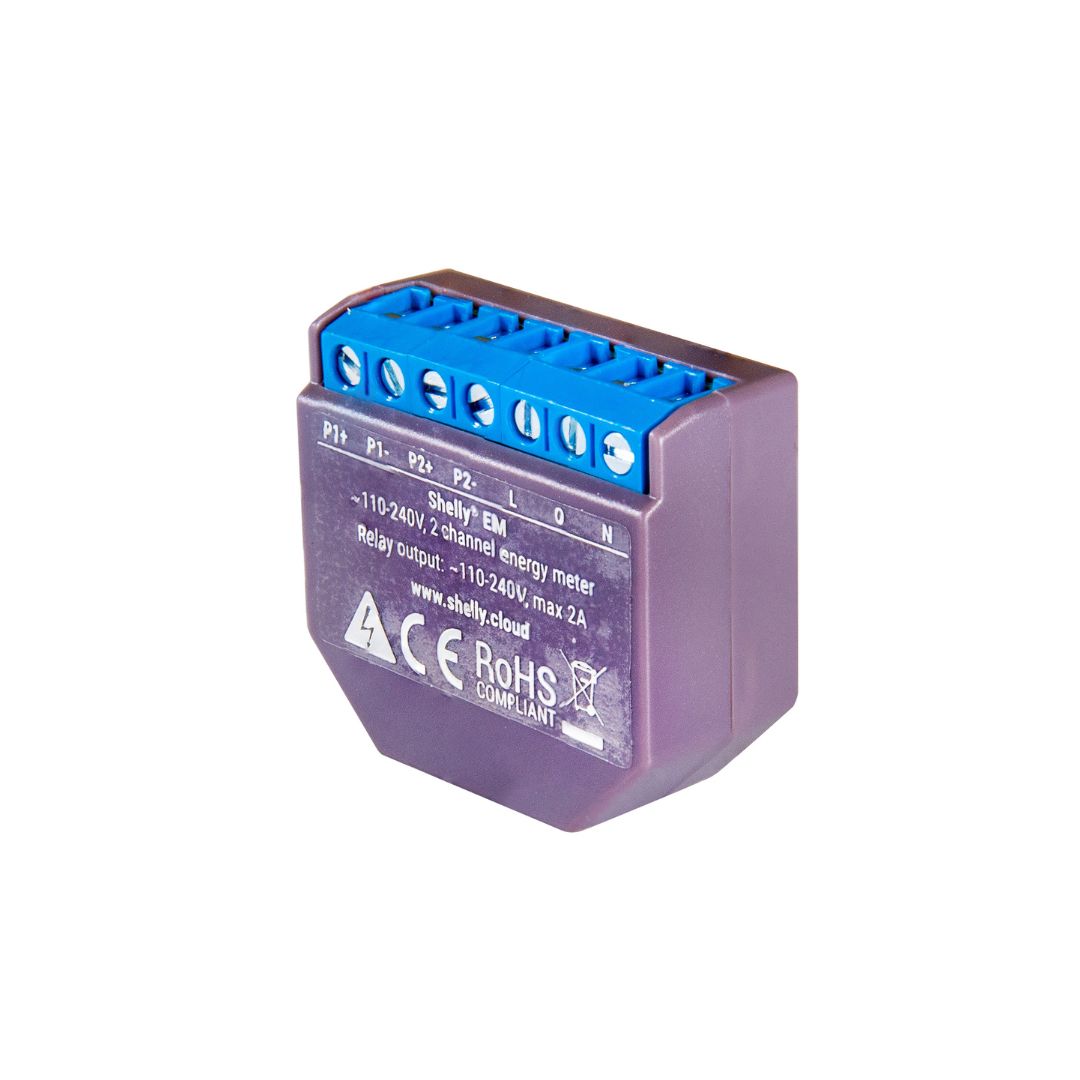

Shelly EM. Smart Energy Meter with Contactor control
Shelly EM. Smart Energy Meter with Contactor control
SKU:EM
Ask for Dealer Price
Retail: Get Free Shipping using code FREESHIP at checkout on orders from USD 75 (for US Continental, exclusions applies*).Shipping to Canada? Write us for a customs estimation.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability
Shelly EM is a Wi-Fi-operated Energy Meter with Contactor Control. It allows you to simultaneously monitor the consumption of any home appliances, electric circuits, and office equipment (lights, power lines, security systems, heating, cooling, etc.) in 2 circuits on the same phase or individually.
Shelly EM is perfect for measuring solar energy production & consumption at the same time, monitoring household consumption, and controlling heavier-load appliances.
It can automatically turn off the whole circuit if consumption or energy (pre-paid energy option) reaches the set limit and has integrated relay output made for contactor control
• Two independent measuring channels up to 120A each
• One contactor control (or load up to 2A)
• 365 days of internal memory in case Wi-Fi is not available
• Voltage measurement and configurable alarm reporting.
• Precise power meter with 1% accuracy, 50A and 120A current transformers are available (sold separately)

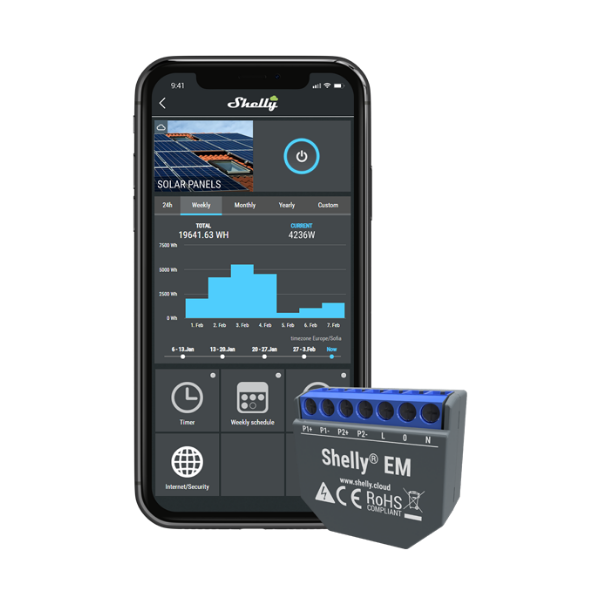

• User friendly charts
• Detailed report downloadable in csv
Measurements:
• 2 x consumption (W),
• 1 x current (A)
• 1 x voltage (V)
• 2 x energy (Wh), consumed energy from power grid
• 2 x energy (Wh), generated energy from a photovoltaic system
• 2 x reactive power (Var)
 |
 |
||
|
|
||
|
|
||
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
 |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| POWER | |
|---|---|
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Power supply DC | No |
| Channels | 2 Channel |
| SPECIAL FUNCTIONS | |
| Contactor Control | Yes - max 2A |
| Roller shutter mode | No |
| Device temperature protection | No |
| Overload protection | No |
| Power measurement | Yes |
| FEATURES | |
| Operational temperature | 0°C to 40°C / 32°F to 104°F |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50m / 164ft outdoors and up to 30m / 98ft indoors (depending on the building materials) |
| DIMENSIONS | |

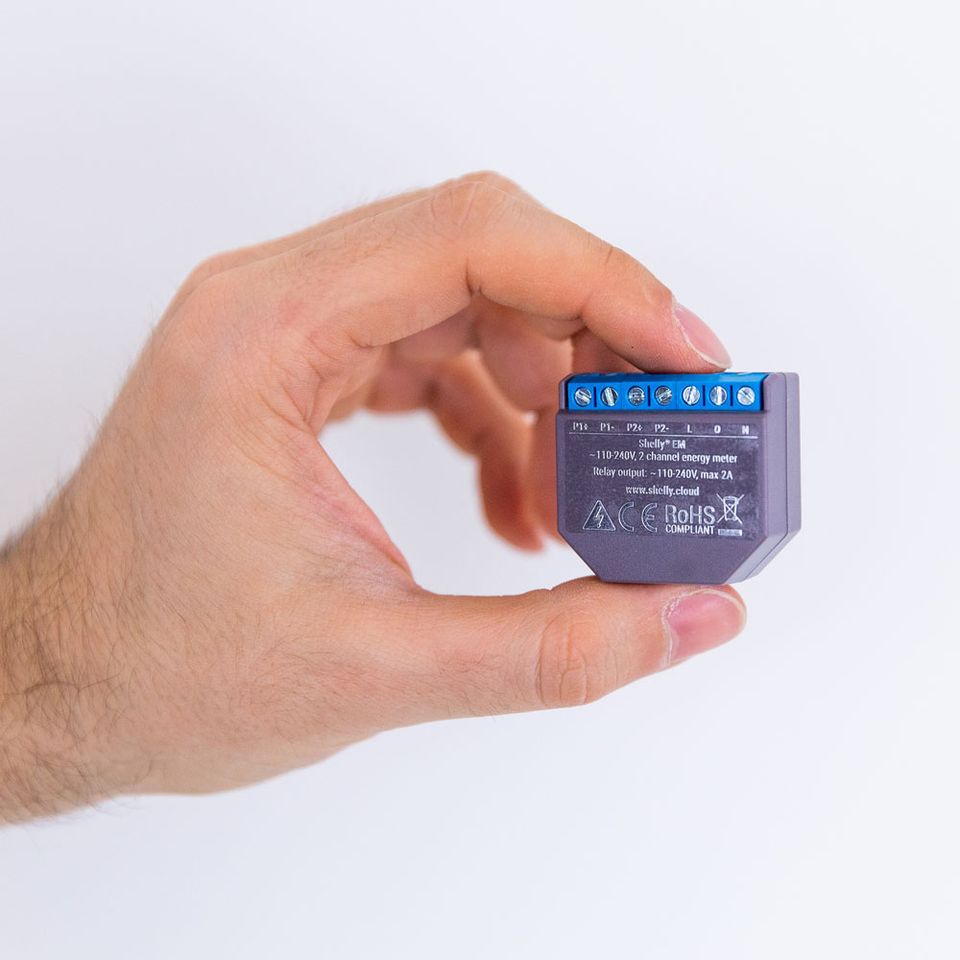

| Size | 42mm x 36mm x 14 mm |
