Shelly BLU Distance. Smart Bluetooth ultrasonic distance sensor
Shelly BLU Distance. Smart Bluetooth ultrasonic distance sensor
SKU:BLU Distance
Ask for Dealer Price
Shipping to Canada? Take advantage of new flat rates.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability

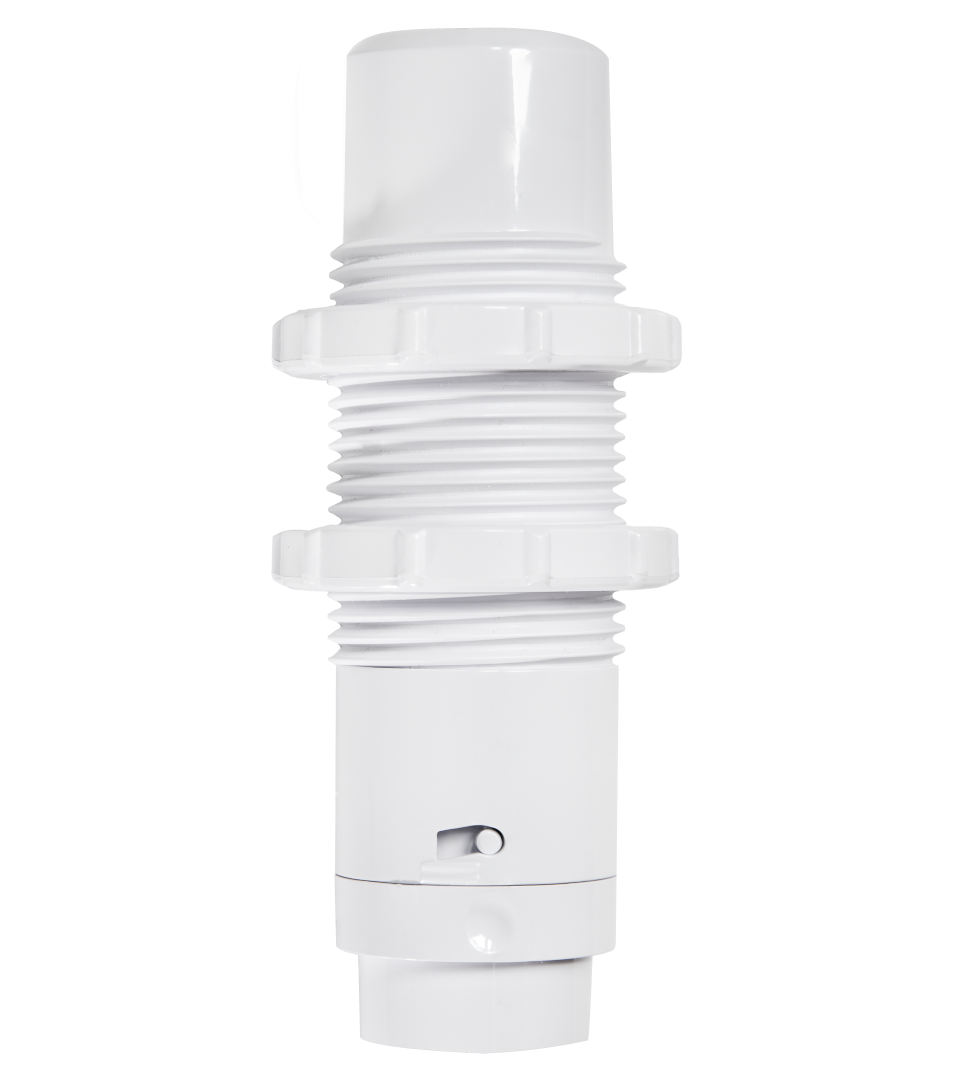

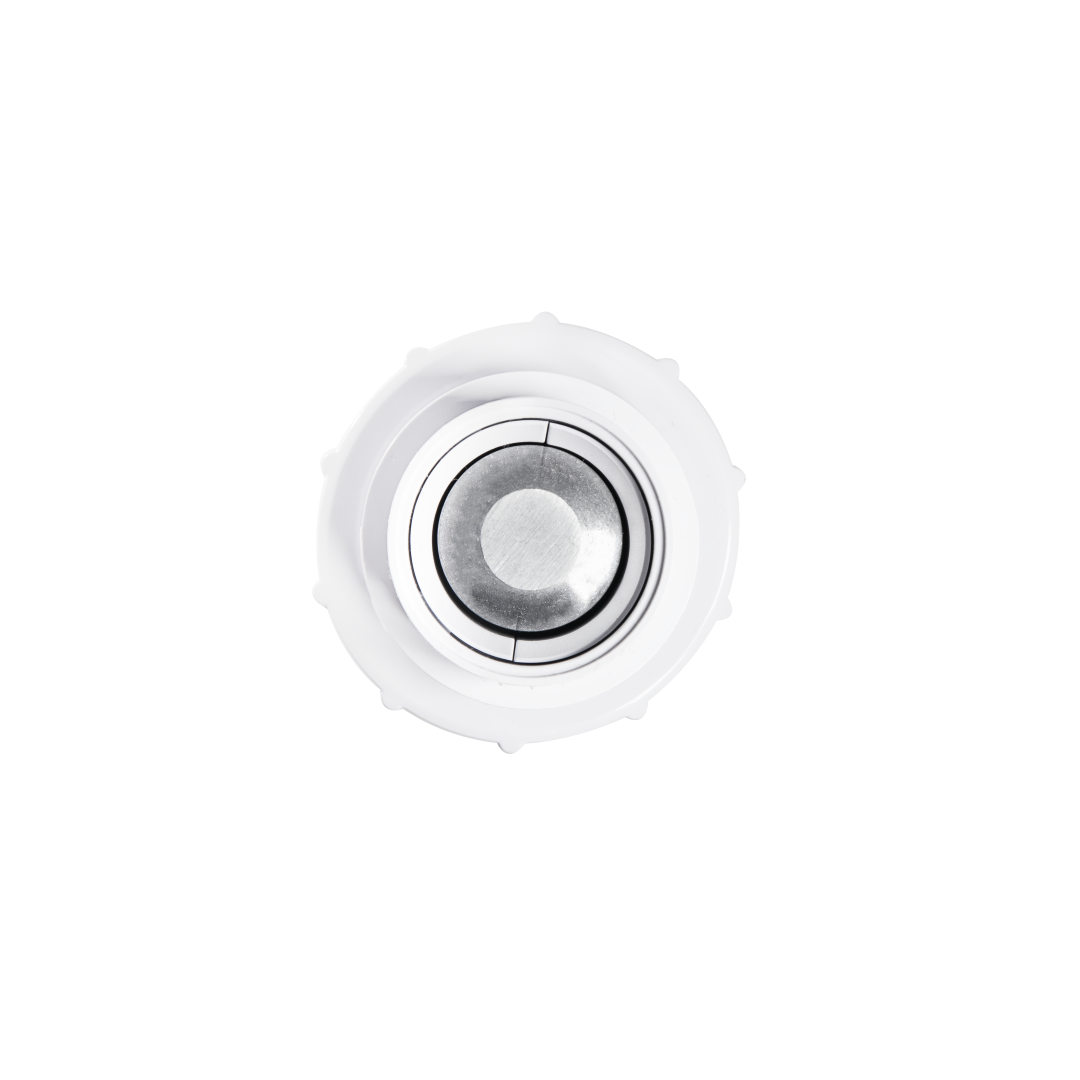

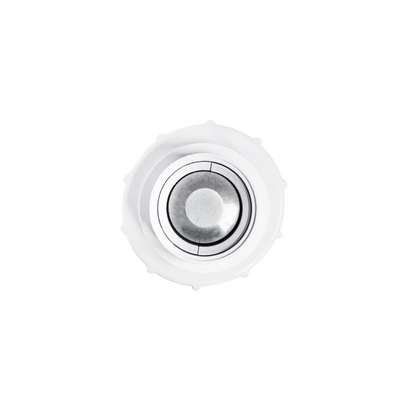

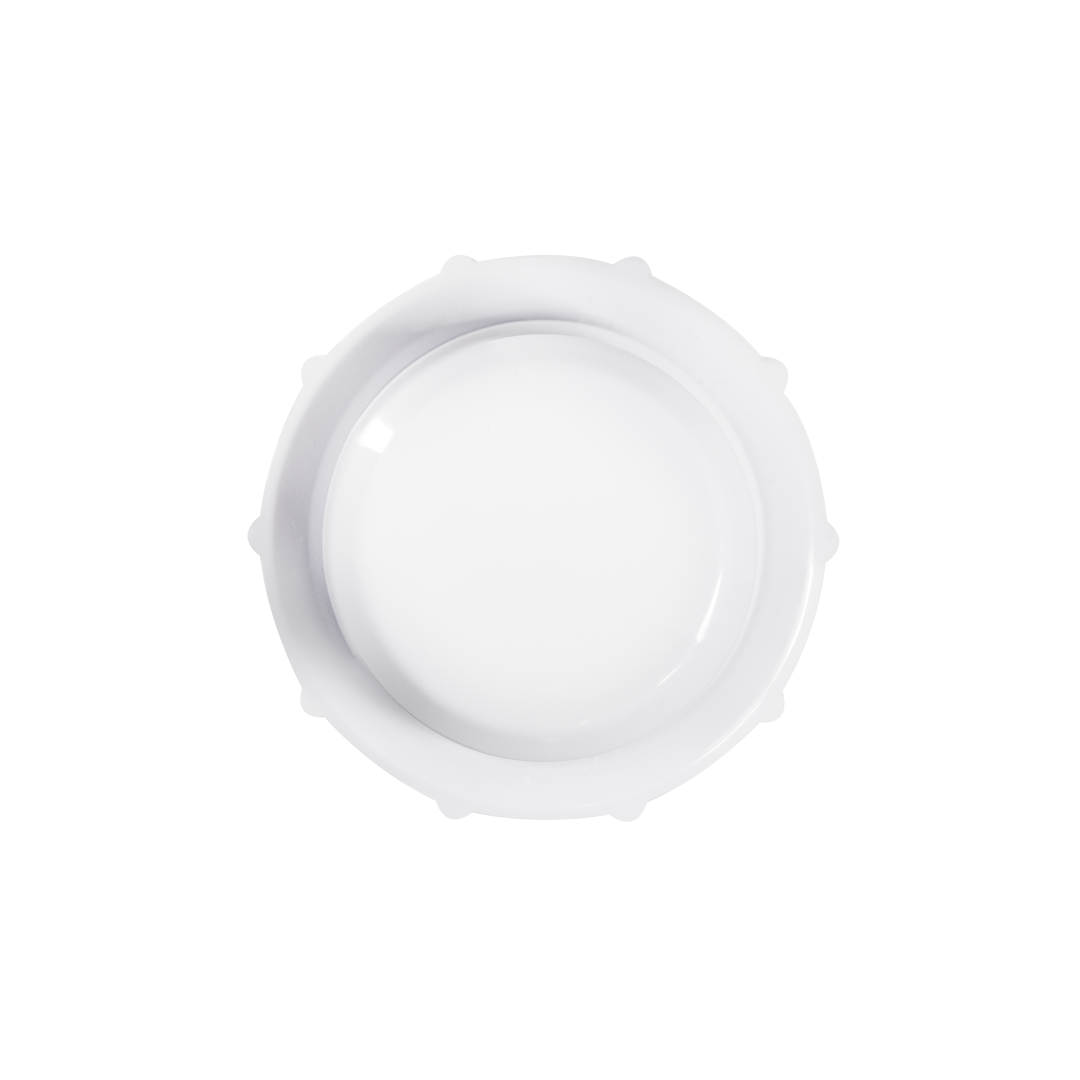

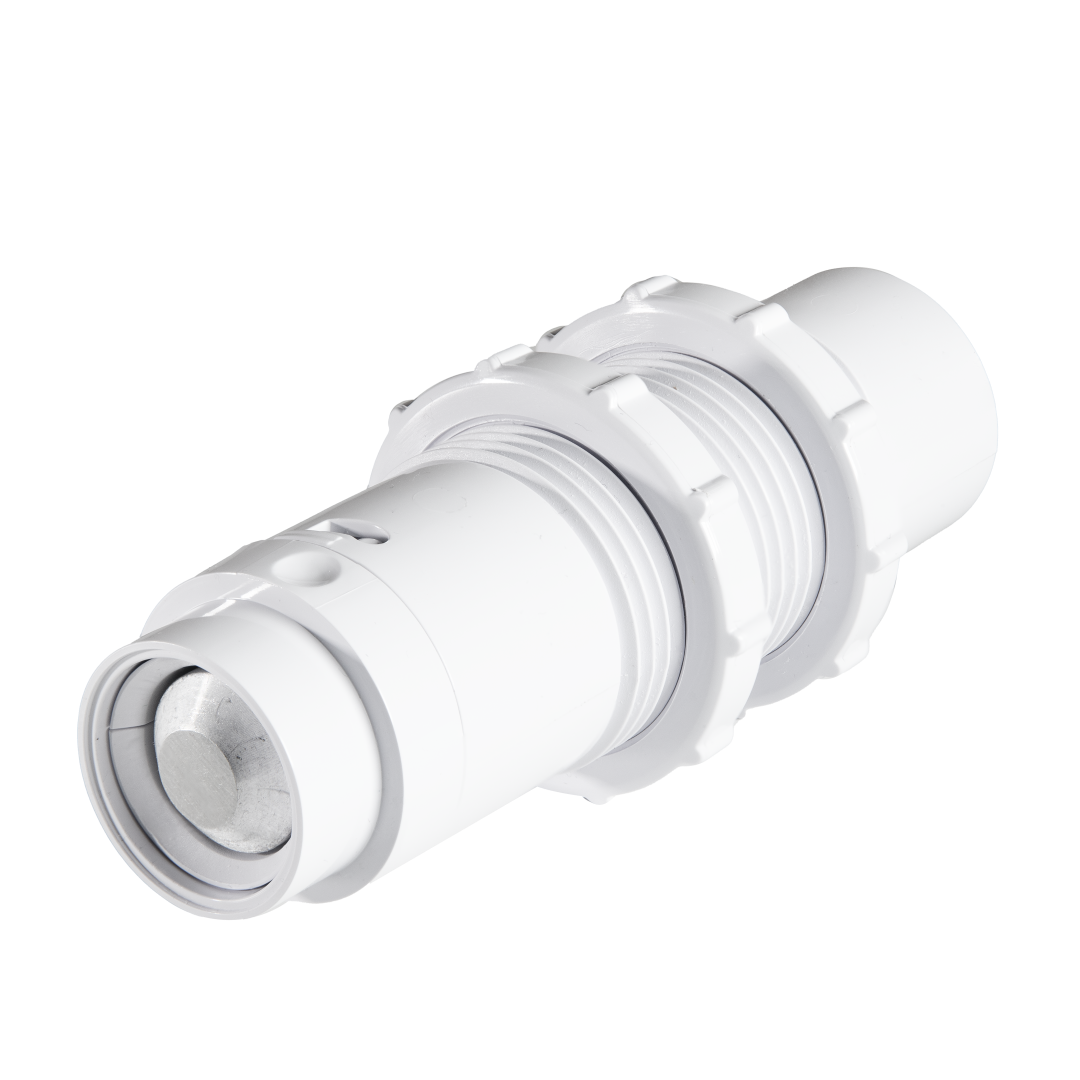

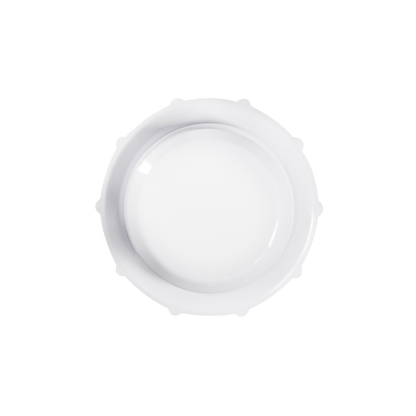

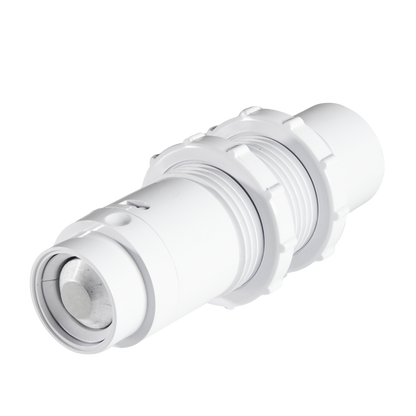

Introducing the Shelly BLU Distance, a smart bluetooth ultrasonic sensor that measures distance to various surfaces, including liquids.
Smarter Spaces Start with Shelly BLU Distance
Enjoy hassle-free monitoring with Shelly BLU Distance. Compact and easy to install, it delivers precise readings with 4 range profiles and adjustable intervals. Whether you're keeping an eye on water tanks, managing parking spaces, or optimizing tight spaces, it fits right in. Long battery life and app control ensure it works reliably in any setup.
Main applications
- Environmental monitoring (liquid levels in tanks or reservoirs)
- Parking management (parking spot occupancy)
- Smart home ecosystems (garage systems, storage tanks)
- Safety systems (door and gate automation)
- Industrial automation
Key Features
- Ultrasonic Distance Measurement up to 5m
- Bluetooth Low Energy (BLE 5.0)
- Liquid level monitoring
- Obstacle detection
- Protection class: IP64
- Compact and portable design
- Long battery life (up to 4 years)
- User can configure the device with 7 ranges of operation: It is possible to set the device on full range mode or either set one or two measurement ranges to save battery by not checking all ranges
Note:
Compatible gateways are Shelly BLU Gateway or Shelly Plus, Gen3, Gen4 or Pro device.
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Mechanical | |
| Size (HxWxD) |
The device, along with the casing, must be mounted in a hole with a minimum diameter of 36.00 mm. |
| Weight | 114 g (with the battery) |
| Shell material | Plastic |
| Color | White |
| Environmental | |
| Ambient temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30% to 75% RH |
| Degree of protection | IP64 |
| Electrical | |
| Power supply | 1 × 3.6 V LISOC 14505 2700 mAh battery |
| Battery life | Up to 4 years |
| Ultrasonic sensor | |
| Measurement range | 200 mm – 5000 mm |
| Accuracy | from 20 cm to 200 cm: ± 2 cm above 200 cm: ± 1% |
| Connectivity | |
| Bluetooth | Yes |
| Bluetooth protocol | 5 |
| Bluetooth RF band | 2402 - 2480 MHz |
| Bluetooth max. RF power | < 20 dBm |
| Bluetooth range | Up to 10 m / 33 ft indoors, 30 m / 100 ft outdoors (depends on local conditions) |
| Microcontroller Unit | |
| CPU | Silicon Labs – EFR32MG27C140F768IM32 |
| Clock frequency | 38.4 MHz |
| RAM | 64 kB |
| Flash | 768 kB |
| Firmware Capabilities | |
| Encryption | AES encryption (CCM mode) |
| Additional Features | |
| Accelerometer | Yes |
| Measure interval | Valid range = 5 seconds to 300 seconds. Default: 30 seconds |
| Measurement ranges (7 types) |
|
What is an IP Rating (Ingress Protection)?
The IP rating or IP code classifies the degree of protection provided by an enclosure, for electrical equipment with a rated voltage not exceeding 72.5 kV. IP ratings are defined by the international standard EN 60529 (British Standard BS EN 60529:1992).
What do the two digits in an IP Rating mean?
The rating consists of the letters IP followed by two digits, the higher the number the better the protection. Sometimes a number is replaced by X, which indicates that the enclosure is not rated for that specification.
IP65 = First Digit – Solids
The first digit indicates the level of protection that the enclosure provides against the ingress of solid foreign objects, from tools or fingers that could be hazardous if they came into contact with electrical conductors or moving parts, to airborne dirt and dust that could damage circuitry.
IP65 = Second Digit – Liquids
The second digit defines the protection of the equipment inside the enclosure against various forms of moisture (drips, sprays, submersion etc).
| First Digit | Intrusion Protection | Second Digit | Moisture Protection |
| 0 | No protection. | 0 | No protection. |
| 1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. | 1 | Protected against vertically falling drops of water, e.g. condensation. |
| 2 | Protected against solid objects over 12mm, e.g. fingers. | 2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
| 3 | Protected against solid objects over 2.5mm, e.g. tools and wires. | 3 | Protected against sprays of water from all directions - limited ingress permitted. |
| 4 | Protected against solid objects over 1mm, e.g. wires. | 4 | Protected against water splashing against the enclosure from any direction - limited ingress permitted. |
| 5 | Protected against dust, limited ingress (no harmful deposit). | 5 | Protected against low-pressure water jets from any direction - limited ingress permitted. |
| 6 | Totally protected against dust. | 6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
| First Digit | Intrusion Protection |
|---|---|
| 0 | No protection. |
| 1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. |
| 2 | Protected against solid objects over 12mm, e.g. fingers. |
| 3 | Protected against solid objects over 2.5mm, e.g. tools & wires. |
| 4 | Protected against solid objects over 1mm, e.g. wires & nails. |
| 5 | Protected against dust limited ingress, no harmful deposits. |
| 6 | Totally protected against dust. |
| Second Digit | Moisture Protection |
| 0 | No protection. |
| 1 | Protected against vertically falling drops of water, e.g. condensation. |
| 2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
| 3 | Protected against direct sprays of water up to 60 degrees from the vertical. |
| 4 | Protected against water splashed from all directions, limited ingress permitted. |
| 5 | Protected against low pressure jets of water from all directions, limited ingress permitted. |
| 6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
