Shelly 2 PM Gen4. Wi-Fi, Zigbee, Matter & Bluetooth smart relay switch, 2-channel smart switch for control of curtains, blinds, and shutters.
Shelly 2 PM Gen4. Wi-Fi, Zigbee, Matter & Bluetooth smart relay switch, 2-channel smart switch for control of curtains, blinds, and shutters.
SKU:2PM Gen4
Condition: New
Ask for Dealer Price
Shipping to Canada? Take advantage of new flat rates.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability

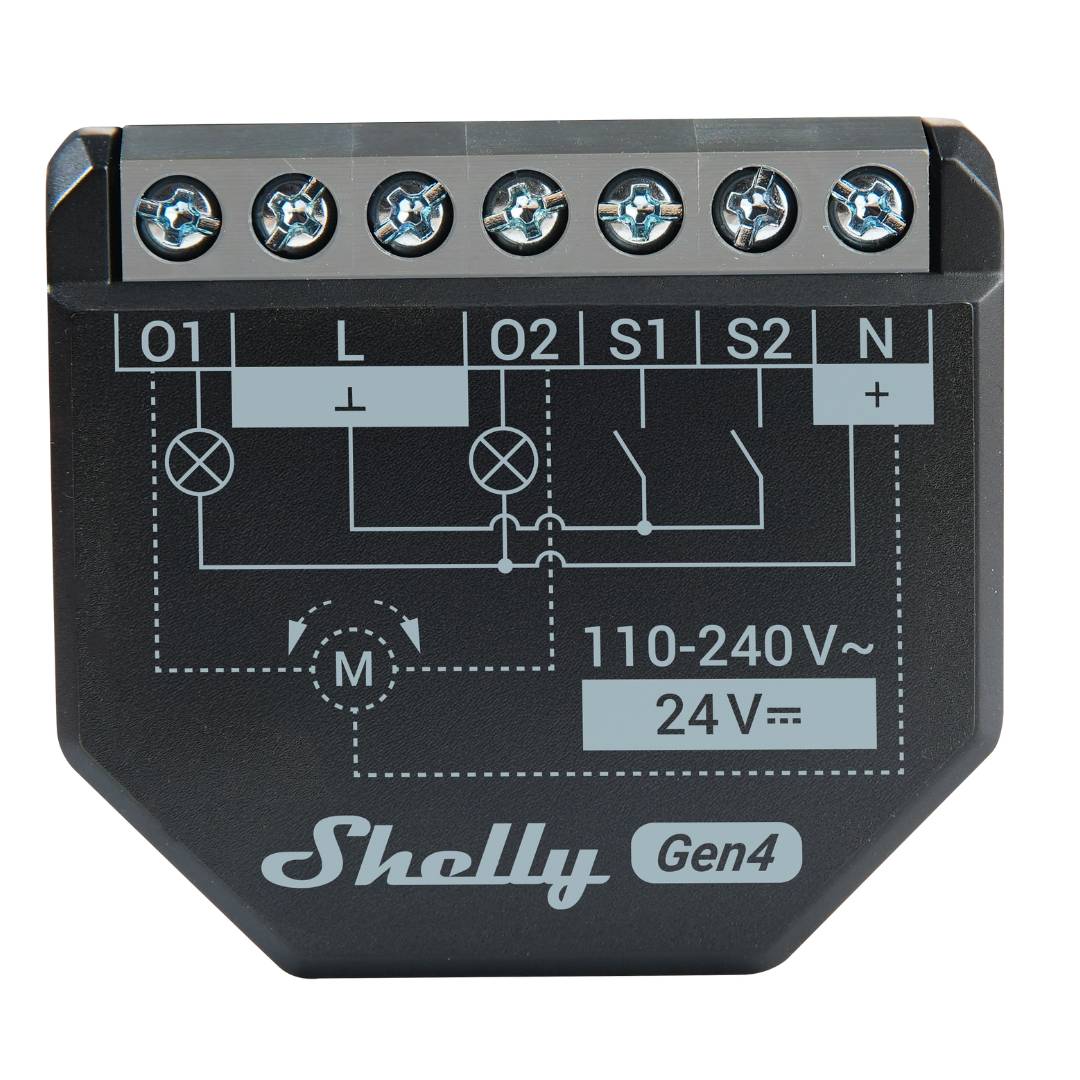

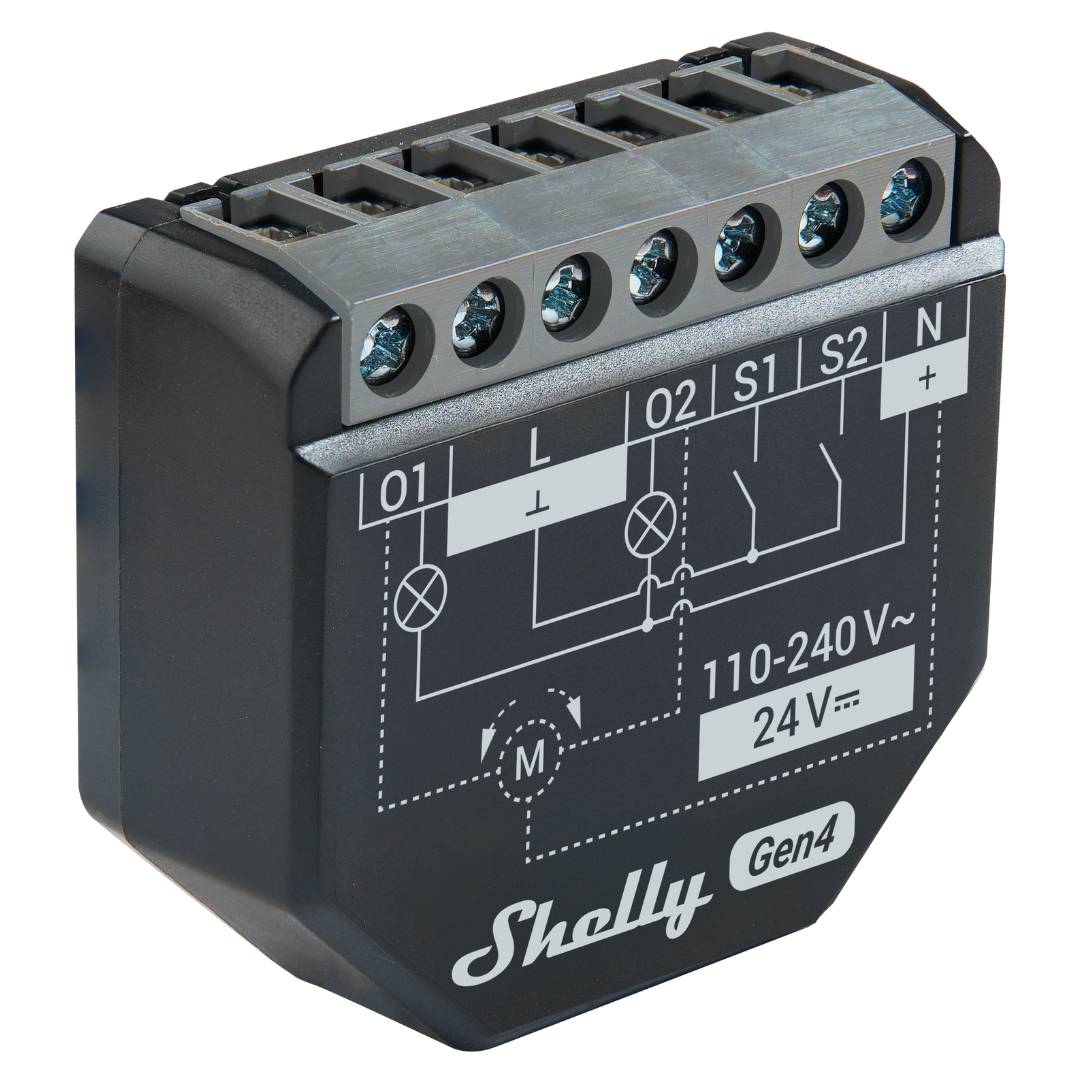

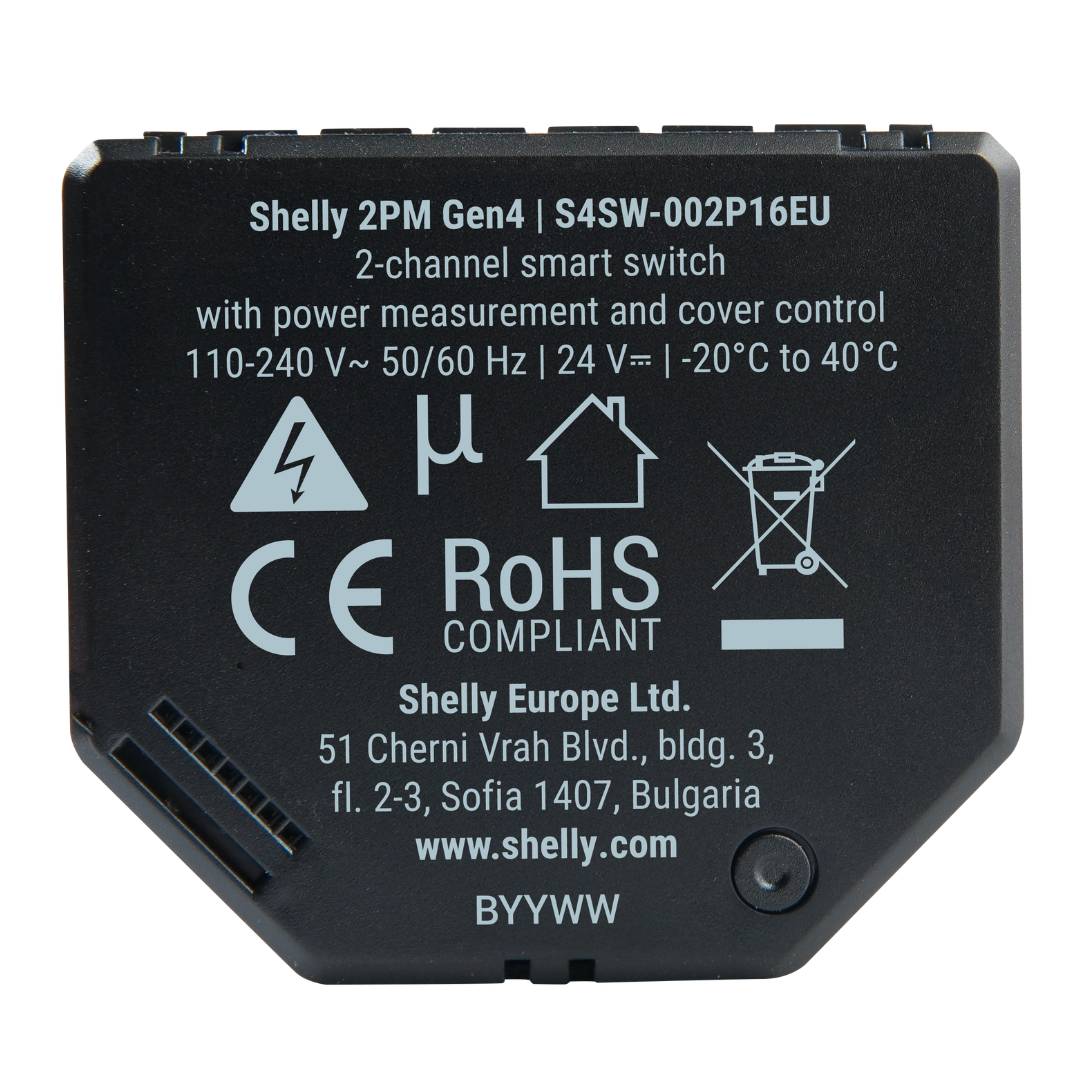

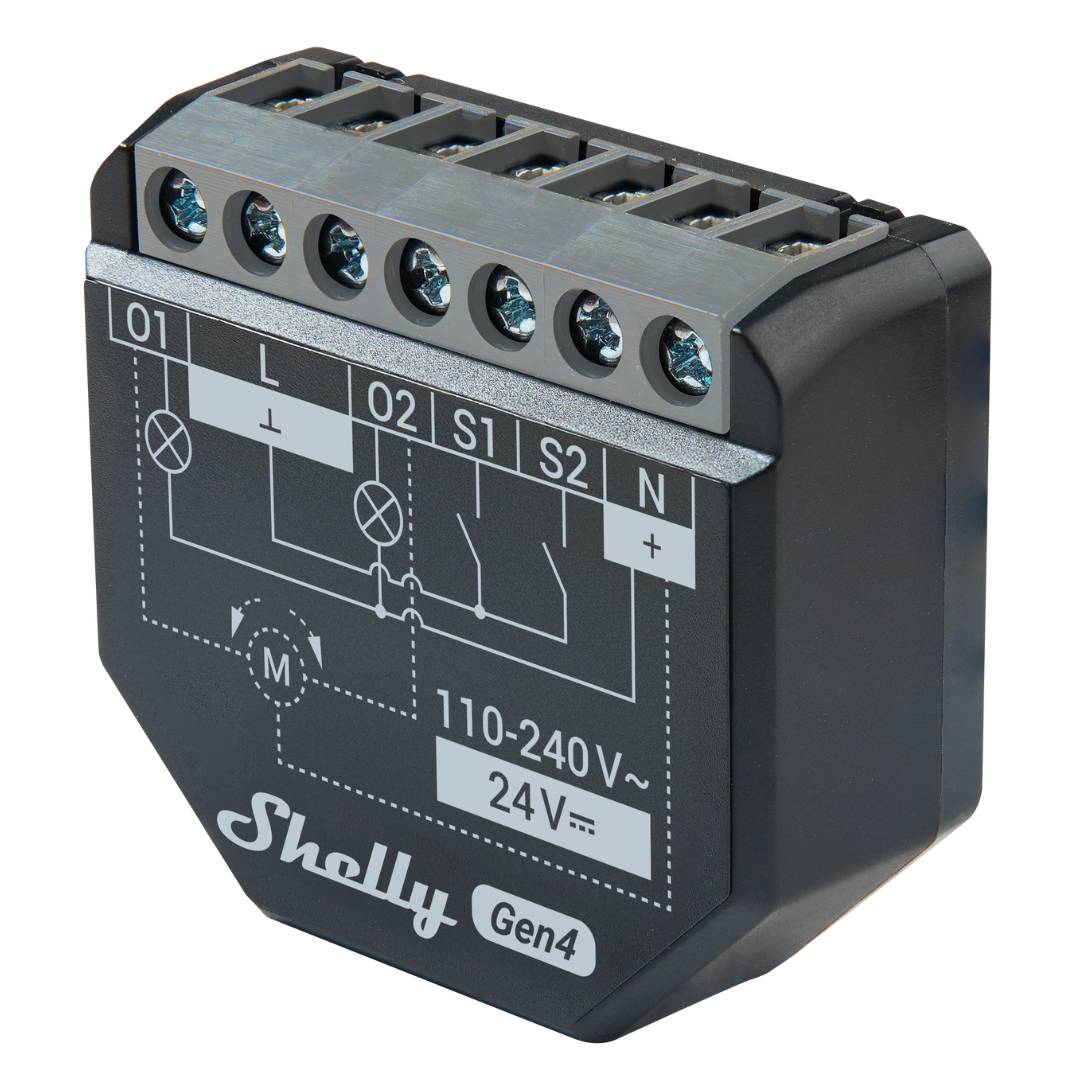

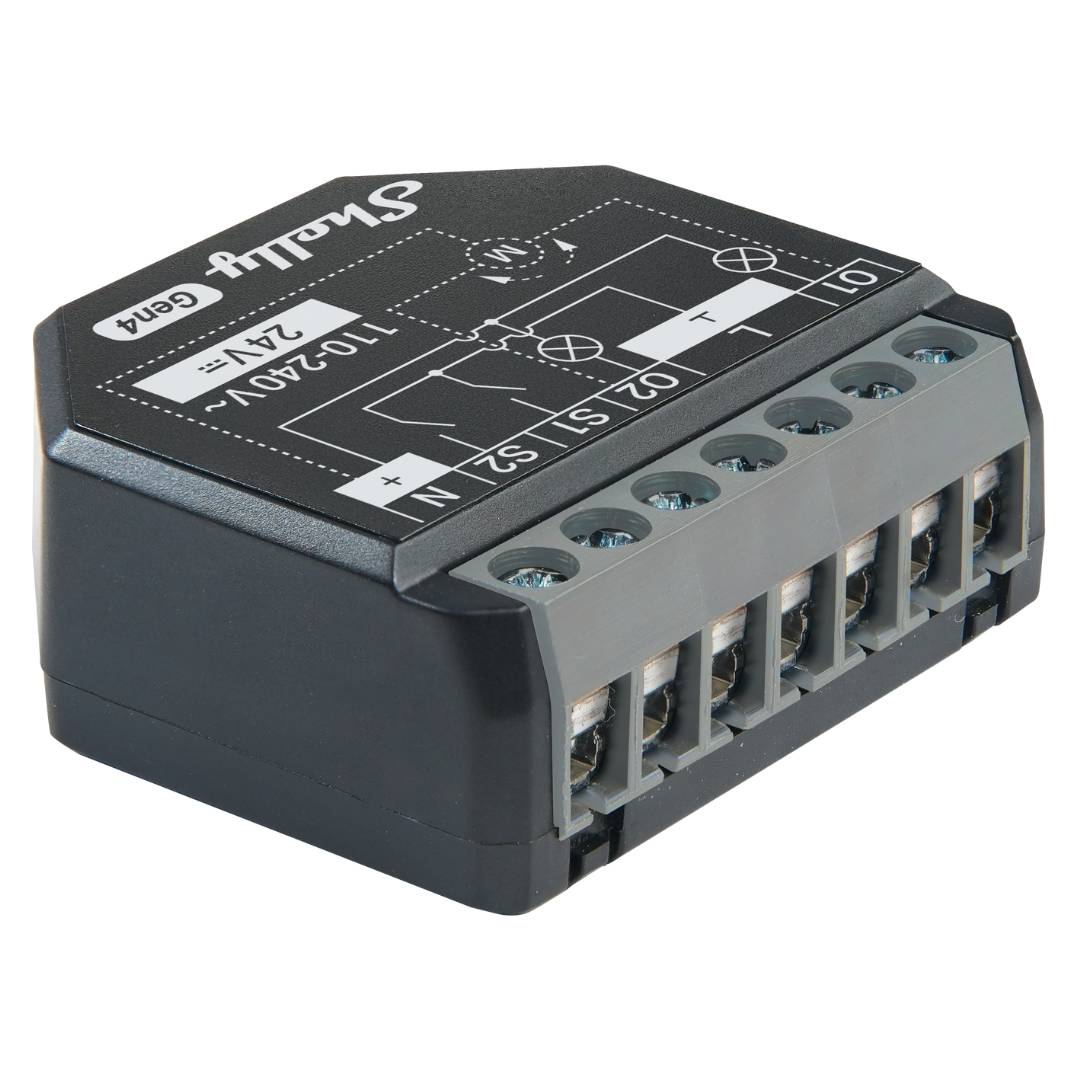

Shelly 2PM Gen4
A compact 2-channel smart switch designed for precise control of curtains, blinds, and shutters. It comes with integrated power metering and supports multiple communication protocols — Wi-Fi, Zigbee, Matter, and Bluetooth — offering maximum flexibility for any smart home setup.
Why choose Shelly 2PM Gen4?
One device, endless possibilities
Shelly 2PM Gen4 is a powerful dual-channel smart switch built to automate and control a wide range of applications — from roller shutters, curtains, and awnings to pool covers and bi-directional AC motors.
With its advanced multi-protocol connectivity, you can select the option that best fits your network: Wi-Fi, Bluetooth, or Zigbee.
Key Features
- Multiprotocol connectivity: Choose from Zigbee, Bluetooth, Wi-Fi and Matter - NEW!!
- 2 channels on the same phase
- Power metering on each channel
- Cover (roller) control - Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.
- Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room. - NEW!!
- Apple Homekit support: Control connected devices using Apple Home app or Siri through Matter - NEW!!
- Perfect to retrofit behind existing switches and sockets
- Supports schedules, scenes and local actions
- Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
- Internal temperature sensor for overheating protection
- Wi-Fi & Zigbee range extender & Bluetooth gateway
- Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
How to Install
How to Install
Gen4 devices
Functionalities
-
Multiprotocol connectivity
Highly compatible! Choose the best protocol for your smart home—Zigbee, Wi-Fi, or Bluetooth
-
Matter certified
Integrates into any Matter ecosystem
-
Smart schedules and scenes
Set custom schedules or scenes based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
-
Power monitoring
Shelly 2PM Gen4 provides precise monitoring of power consumption and free data storage.
-
Slats angle control
Use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
-
Cover (roller) control
Control bi-directional AC motors and set your desired position.
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*) |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch |
| Weight: | 30 g / 1.06 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | Wall box |
| Shell material: | Plastic |
| Shell color: | Black |
| Terminals color: | Grey (Mouse Grey) |
| Environmental | |
| Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 - 240 V~ / 24 VDC ±10% |
| Power consumption: | < 1.4 W |
| External protection: | Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
| Output circuits ratings | |
| Max. switching voltage: |
|
| Max. switching current AC: | 10 A (per channel), 16 A (total), 18 A (total peak) |
| Max. switching current DC: | 10 A |
| Sensors, meters | |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Internal-temperature sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2412 - 2472 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depends on local conditions) |
| Bluetooth | |
| Protocol: | 5.0 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depends on local conditions) |
| Zigbee | |
| Protocol: | 802.15.4 |
| RF bands: | 2400 to 2483.5 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 m / 984 ft outdoors (depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP-Shelly-C68F |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
