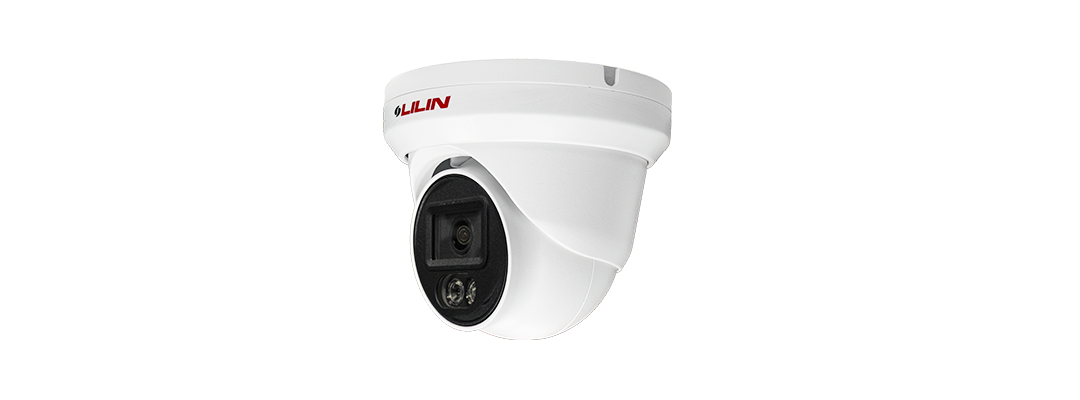

Lilin V1R4452E2. 5MP Day & Night Fixed IR IP Turret Camera
Lilin V1R4452E2. 5MP Day & Night Fixed IR IP Turret Camera
SKU:V1R4452E2
Ask for Dealer Price
Shipping to Canada? Write us for a customs estimation.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability
This outdoor safety virtual protection system can support four sets of alert zones or directional alert lines simultaneously. Each alert zone or line can be set to trigger different events. With AI recognition, it can filter out invalid objects and significantly reduce false alarms.
Night recognition
Minimum identification resolution 200 x 200 Pix
The alert zone/line can independently recognize different objects and trigger different events after identification.
Human features recognition includes standing, running, squatting, walking, crawling, climbing, wearing hats, holding umbrellas, etc.
Vehicle recognition includes bicycles, cars, motorcycles, buses, trains, trucks, excavators, etc.
Cold zone setting can eliminate environmental abnormalities in the recognition of objects and improve accuracy.
It is possible to set the selected object type, object size, and object confidence level to filter recognized objects.
LILIN V1R4452E2 - Main Features
- 5 megapixel CMOS image sensor
- 5MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- 3D noise reduction
- 2D WDR function
- HDR function up to 120dB
- IVS
- Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata
- SMART event
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- ONVIF Profile S , T , G , M supported
- IP67 rain and dust resistant
- Vandal resistant approve IK10
What is an IP Rating (Ingress Protection)?
The IP rating or IP code classifies the degree of protection provided by an enclosure, for electrical equipment with a rated voltage not exceeding 72.5 kV. IP ratings are defined by the international standard EN 60529 (British Standard BS EN 60529:1992).
What do the two digits in an IP Rating mean?
The rating consists of the letters IP followed by two digits, the higher the number the better the protection. Sometimes a number is replaced by X, which indicates that the enclosure is not rated for that specification.
IP65 = First Digit – Solids
The first digit indicates the level of protection that the enclosure provides against the ingress of solid foreign objects, from tools or fingers that could be hazardous if they came into contact with electrical conductors or moving parts, to airborne dirt and dust that could damage circuitry.
IP65 = Second Digit – Liquids
The second digit defines the protection of the equipment inside the enclosure against various forms of moisture (drips, sprays, submersion etc).
| First Digit | Intrusion Protection | Second Digit | Moisture Protection |
| 0 | No protection. | 0 | No protection. |
| 1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. | 1 | Protected against vertically falling drops of water, e.g. condensation. |
| 2 | Protected against solid objects over 12mm, e.g. fingers. | 2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
| 3 | Protected against solid objects over 2.5mm, e.g. tools and wires. | 3 | Protected against sprays of water from all directions - limited ingress permitted. |
| 4 | Protected against solid objects over 1mm, e.g. wires. | 4 | Protected against water splashing against the enclosure from any direction - limited ingress permitted. |
| 5 | Protected against dust, limited ingress (no harmful deposit). | 5 | Protected against low-pressure water jets from any direction - limited ingress permitted. |
| 6 | Totally protected against dust. | 6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
| First Digit | Intrusion Protection |
|---|---|
| 0 | No protection. |
| 1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. |
| 2 | Protected against solid objects over 12mm, e.g. fingers. |
| 3 | Protected against solid objects over 2.5mm, e.g. tools & wires. |
| 4 | Protected against solid objects over 1mm, e.g. wires & nails. |
| 5 | Protected against dust limited ingress, no harmful deposits. |
| 6 | Totally protected against dust. |
| Second Digit | Moisture Protection |
| 0 | No protection. |
| 1 | Protected against vertically falling drops of water, e.g. condensation. |
| 2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
| 3 | Protected against direct sprays of water up to 60 degrees from the vertical. |
| 4 | Protected against water splashed from all directions, limited ingress permitted. |
| 5 | Protected against low pressure jets of water from all directions, limited ingress permitted. |
| 6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
