Shelly Plus UNI. Tiny Low-Voltage Smart Relay Wi-Fi universal module. Works with AC and DC applications.
Shelly Plus UNI. Tiny Low-Voltage Smart Relay Wi-Fi universal module. Works with AC and DC applications.
SKU:Plus UNI
Ask for Dealer Price
Shipping to Canada? Write us for a customs estimation.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
No se pudo cargar la disponibilidad de retiro

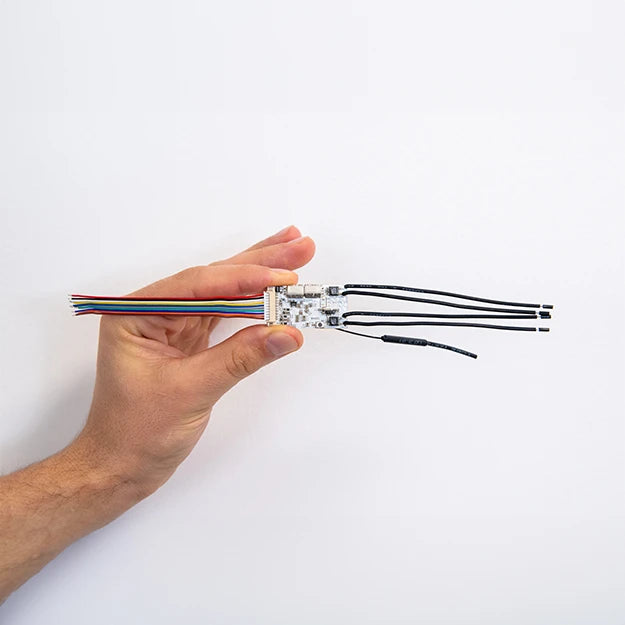

Shelly Plus UNI is the newest and smallest universal smart relay module that can make any appliance smart! With this tiny insulated chip you can control any sensor and measure data to trigger actions.
Fit the tiny Shelly Plus UNI relay anywhere! Designed for low-voltage systems, this small device offers advanced automation and insightful monitoring, connecting to various type of sensors. Ideal for a variety of applications. Shelly Plus Uni unlocks a range of smart possibilities for your home appliances.
Even though there is no plastic box surrounding it, the transparent cover over the chip insulates and protects it from any possible dangers to the device or your home appliances.
Adventure friendly:
Shelly Plus Uni works on wider range of DC voltages, making it perfect for the automation of your Camper and its appliances! Use the analog input to measure your camper batteries and receive an instant notification to your phone if they're running low. Together with other Shelly devices, you can turn off connected appliances to take further action and save power. Additionally, you can use its binary inputs to detect if a door has been opened and be alerted of a potential break-in while you're away.
Characteristics:
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Suitable for small appliances with low-voltage AC and DC applications (8-24 VAC, 9-28 VDC, and 5 VDC)
- Has two digital and 1 analog inputs
- Supports 1-Wire sensors (single DHT22 & up to 5 DS18B20)
- Compatible with most Arduino sensors! Use its digital or analog inputs to measure your desired parameters and create complex automation scenes based on the sensor data
- Receive precise data readings from your energy/gas/water meter (or any other meter that supports pulse count readings via external sensors)
- Wi-Fi Range Extender & BLE Gateway
- Extremely fast processor for immediate reaction - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
 |
 |
|
|
||
|
|
||
No se requiere un hub, universalmente compatibleLos productos de Shelly se pueden controlar localmente, directamente y sin hub a través de su teléfono inteligente/tableta con la aplicación Shelly, sin necesidad de un hub u otro equipo. Habilite la funcionalidad via nube y obtenga control remoto desde cualquier lugar. Al mismo tiempo, puede integrar directamente Shelly con prácticamente todos los hubs inteligentes, asistente de voz, plataforma de código abierto o sistema de control premium. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No se requiere un hub, universalmente compatibleLos productos de Shelly se pueden controlar localmente, directamente y sin hub a través de su teléfono inteligente/tableta con la aplicación Shelly, sin necesidad de un hub u otro equipo. Habilite la funcionalidad via nube y obtenga control remoto desde cualquier lugar. Al mismo tiempo, puede integrar directamente Shelly con prácticamente todos los hubs inteligentes, asistente de voz, plataforma de código abierto o sistema de control premium. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Físicas | |
|---|---|
| Dimensiones (LxAxH) | 37x42x16 mm / 1.46x1.65x0.63 in (sin los cables) |
| Peso | 8.5 g / 0.3 oz |
| Temperatura ambiente | -20 °C a 40 °C / -4 °F a 104 °F |
| Humedad | 30 % a 70 % HR |
| Alimentación | 8-24 VCA / 9-28 VCC / 5 VCC (estabilizado, a través de +5 VCC y GND) |
| Consumo de energía | < 1 W |
| Resistencia de entradas digitales | 50 kΩ |
| Voltaje de activación de entradas digitales | 1.5 V (nivel bajo activo) |
| Voltaje máximo de conmutación | 30 V |
| Corriente máxima de conmutación | 250 mA |
| Voltímetro | 0-15 VCC / 0-30 VCC (Dos rangos) |
| Voltaje de activación de entrada de contador de pulsos | 1.5 V (nivel bajo activo) |
| Frecuencia máxima del contador de pulsos | 1 kHz |
| Sensores externos compatibles | Un solo DHT22 o hasta cinco DS18B20 |
| Banda de RF | 2400 - 2495 MHz |
| Potencia máxima de RF | < 20 dBm |
| Protocolo de Wi-Fi | 802.11 b/g/n |
| Rango operativo de Wi-Fi (dependiendo de las condiciones locales): | |
| hasta 50 m / 160 ft | en exteriores |
| hasta 30 m / 100 ft | en interiores |
| Protocolo Bluetooth | 4.2 |
| Rango operativo de Bluetooth (dependiendo de las condiciones locales): | |
| hasta 30 m / 100 ft | en exteriores |
| hasta 10 m / 33 ft | en interiores |
| CPU | ESP32 |
| Flash | 4 MB |
| Schedules | 20 |
| Webhooks (acciones de URL) | 20 con 5 URL por gancho |
| Scripting | Sí |
| MQTT | Sí |
