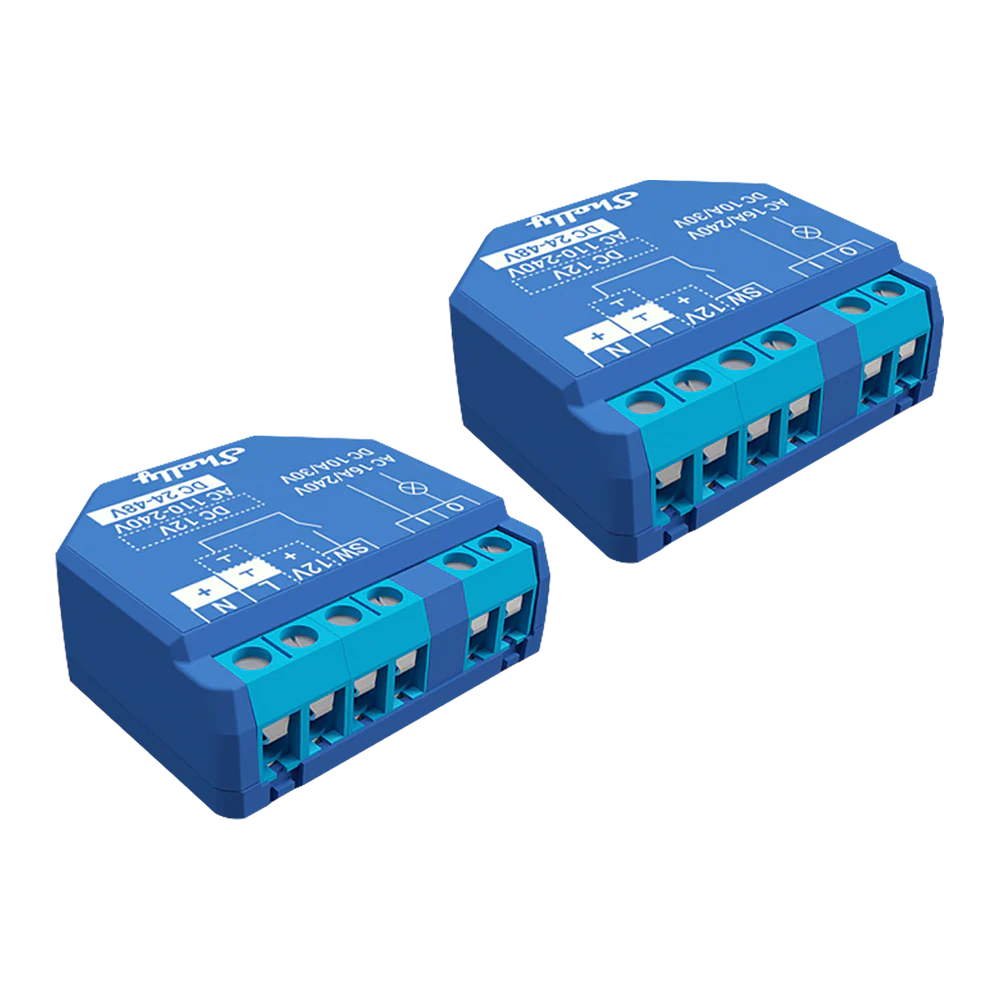

Shelly Plus 1 UL. WiFi Smart Relay Switch 15A, 1 Channel with Dry Contacts, No Hub Required. For Lights, Garage Doors & Automation (Open Box)
Shelly Plus 1 UL. WiFi Smart Relay Switch 15A, 1 Channel with Dry Contacts, No Hub Required. For Lights, Garage Doors & Automation (Open Box)
SKU:Plus 1-1 UL_OB_AN
Condition: Open Box
Open Box units may include manufacturer warranty when applicable and/or a Digital Bay Tech limited replacement warranty for manufacturing defects.
See warranty details below.
Ask for Dealer Price
Shipping to Canada or International? Take advantage of new flat rates.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
No se pudo cargar la disponibilidad de retiro
Shelly Plus 1 UL is a WiFi smart relay switch designed for safe and reliable control of lights, garage doors, irrigation systems, HVAC equipment, and other electrical appliances.
This 1-channel 15A smart relay features dry contacts, allowing you to control low-voltage and high-voltage circuits independently. That makes it ideal for garage door openers, alarm panels, thermostats, and other control applications.
Powered by the ESP32 processor, it delivers fast response time, improved API performance, and enhanced security with MQTT, TLS, and custom certificate support.
Small enough to fit behind standard US wall switches, outlets, or inside electrical boxes, Shelly Plus 1 UL enables retrofit smart automation without replacing existing hardware.
No hub required. Connect directly to your WiFi network and manage remotely via app, voice assistants, or automation platforms.
Key Features
- UL Listed (E520661) – Certified for US installations
- 1 Channel, 15A max load
- Dry contact relay output (voltage-free switching)
- WiFi operated – No hub required
- Bluetooth for fast setup and inclusion
- ESP32 processor with improved API
- MQTT, WSS, TLS & custom certificate support
- Over-temperature protection
- Fits standard US electrical boxes
How to Install
How to Install
Funcionalidades
-
Wi-Fi Operated
Connect Shelly Plus 1 to your Wi-Fi network. No HUB required!
-
Dry contacts
Use it to control a wide range of devices and appliances.
-
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
-
Bluetooth
Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
-
Low and high voltage support
Use a wide range of output voltage levels. Supports low voltages.
-
Smart scenes
Set custom scenes by combining Shelly Plus 1 with your other Shelly devices.
No se requiere un hub, universalmente compatibleLos productos de Shelly se pueden controlar localmente, directamente y sin hub a través de su teléfono inteligente/tableta con la aplicación Shelly, sin necesidad de un hub u otro equipo. Habilite la funcionalidad via nube y obtenga control remoto desde cualquier lugar. Al mismo tiempo, puede integrar directamente Shelly con prácticamente todos los hubs inteligentes, asistente de voz, plataforma de código abierto o sistema de control premium. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No se requiere un hub, universalmente compatibleLos productos de Shelly se pueden controlar localmente, directamente y sin hub a través de su teléfono inteligente/tableta con la aplicación Shelly, sin necesidad de un hub u otro equipo. Habilite la funcionalidad via nube y obtenga control remoto desde cualquier lugar. Al mismo tiempo, puede integrar directamente Shelly con prácticamente todos los hubs inteligentes, asistente de voz, plataforma de código abierto o sistema de control premium. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ALIMENTACIÓN | |
|---|---|
| Fuente de alimentación AC | 110-230V ±10%, 50/60Hz |
| Carga máxima | 15A |
| Fuente de alimentación DC | 24 – 240V / 12V estabilizado |
| Canales | 1 canal |
| FUNCIONES ESPECIALES | |
| Contactos secos | Sí |
| Modo persiana enrollable | No |
| Protección de temperatura del dispositivo | Sí |
| Protección contra sobrecarga | No |
| Medición de potencia | No |
| Trabajo sin línea neutral | No |
| CARACTERÍSTICAS | |
| Webhooks HTTP/HTTPS | Sí |
| Scripts personalizados (mJs) | Sí |
| Temperatura de funcionamiento | -20°C a 40°C / -4°F a 104°F |
| Consumo de energía del dispositivo | < 1 W |
| Control local y remoto | Sí |
| Amanecer/Atardecer | Sí |
| Programa semanal | Sí |
| Opción UL Listado | No |
| CONECTIVIDAD | |
| Inalámbrico | Sí |
| Protocolo Wi-Fi | 802.11 b/g/n |
| Alcance Wi-Fi | hasta 50 m al aire libre y hasta 30 m en interiores (dependiendo de los materiales de construcción) |
| Bluetooth | Sí |
| DIMENSIONES | |
| Tamaño | 1.65" x 1.5" x 0.67" / 42 x 38 x 17mm |
