Shelly

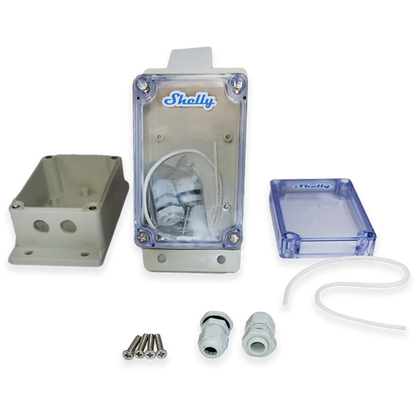

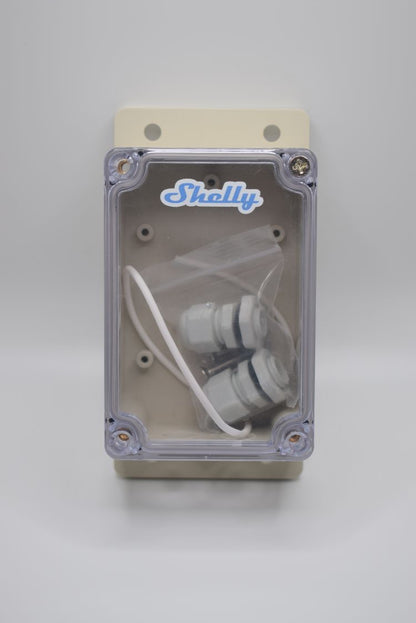

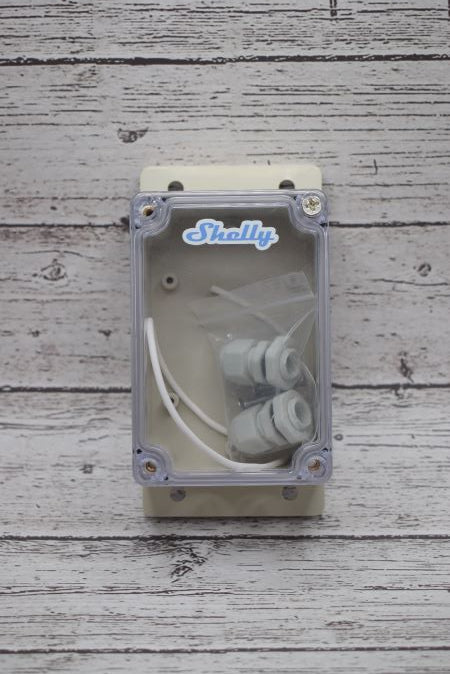

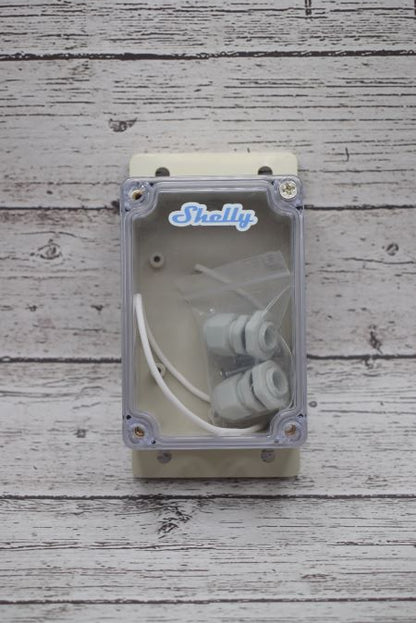

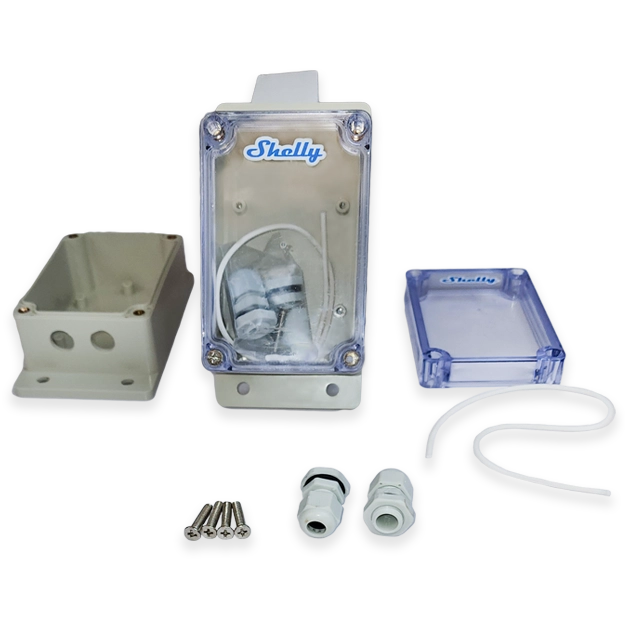

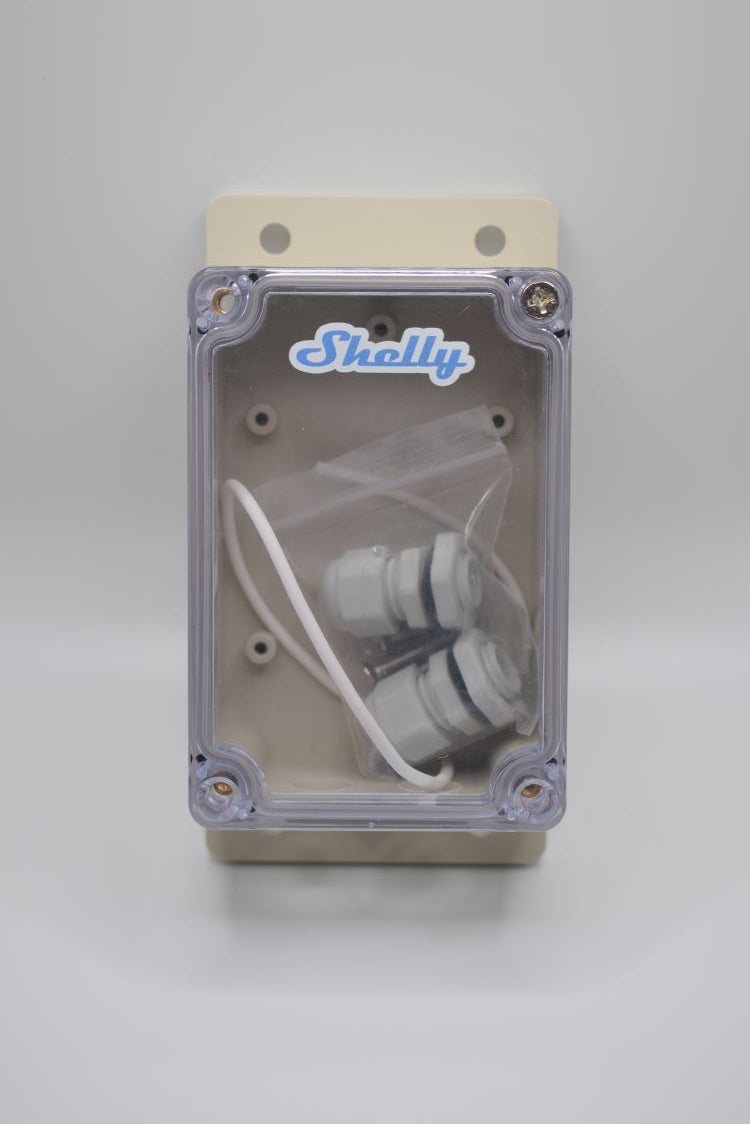

Caja exterior Shelly. Caja de cubierta transparente con clasificación IP66. 3,9" x 2,75" x 2" con 2 protectores de cables

Caja exterior Shelly. Caja de cubierta transparente con clasificación IP66. 3,9" x 2,75" x 2" con 2 protectores de cables

SKU:IP6610755

Ask for Dealer Price

Precio habitual $17.25 USD
Precio habitual $17.25 USD Precio de oferta $17.25 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Retail: Get Free Shipping using code FREESHIP at checkout on orders from USD 75 (for US Continental, exclusions applies*).
Shipping to Canada? Write us for a customs estimation.

(*)See terms & conditions

Need more quantity? We have it! Contact us and we will get it for you

100% Secure Payments

Caja resistente al agua con clasificación IP66. 3,9" x 2,75" x 2" con 2 protectores de cable con cubierta transparente.

Ideal para proyectos al aire libre en su patio trasero u otras áreas al aire libre.

Nota:
Solo 1 caja incluida.

Ver todos los detalles

What is an IP Rating (Ingress Protection)?

The IP rating or IP code classifies the degree of protection provided by an enclosure, for electrical equipment with a rated voltage not exceeding 72.5 kV. IP ratings are defined by the international standard EN 60529 (British Standard BS EN 60529:1992).

What do the two digits in an IP Rating mean?

The rating consists of the letters IP followed by two digits, the higher the number the better the protection. Sometimes a number is replaced by X, which indicates that the enclosure is not rated for that specification.

IP65 = First Digit – Solids

The first digit indicates the level of protection that the enclosure provides against the ingress of solid foreign objects, from tools or fingers that could be hazardous if they came into contact with electrical conductors or moving parts, to airborne dirt and dust that could damage circuitry.

IP65 = Second Digit – Liquids

The second digit defines the protection of the equipment inside the enclosure against various forms of moisture (drips, sprays, submersion etc).

First Digit Intrusion Protection Second Digit Moisture Protection
0 No protection. 0 No protection.
1 Protected against solid objects over 50mm, e.g. accidental touch by hands. 1 Protected against vertically falling drops of water, e.g. condensation.
2 Protected against solid objects over 12mm, e.g. fingers. 2 Protected against direct sprays of water up to 15 degrees from the vertical.
3 Protected against solid objects over 2.5mm, e.g. tools and wires. 3 Protected against sprays of water from all directions - limited ingress permitted.
4 Protected against solid objects over 1mm, e.g. wires. 4 Protected against water splashing against the enclosure from any direction - limited ingress permitted.
5 Protected against dust, limited ingress (no harmful deposit). 5 Protected against low-pressure water jets from any direction - limited ingress permitted.
6 Totally protected against dust. 6 Protected against strong jets of water, e.g. on ships deck, limited ingress permitted.
First Digit Intrusion Protection
0 No protection.
1 Protected against solid objects over 50mm, e.g. accidental touch by hands.
2 Protected against solid objects over 12mm, e.g. fingers.
3 Protected against solid objects over 2.5mm, e.g. tools & wires.
4 Protected against solid objects over 1mm, e.g. wires & nails.
5 Protected against dust limited ingress, no harmful deposits.
6 Totally protected against dust.
Second Digit Moisture Protection
0 No protection.
1 Protected against vertically falling drops of water, e.g. condensation.
2 Protected against direct sprays of water up to 15 degrees from the vertical.
3 Protected against direct sprays of water up to 60 degrees from the vertical.
4 Protected against water splashed from all directions, limited ingress permitted.
5 Protected against low pressure jets of water from all directions, limited ingress permitted.
6 Protected against strong jets of water, e.g. on ships deck, limited ingress permitted.

Contenido desplegable

Garantía

  • Garantía del fabricante USA Pro Market : Garantía del fabricante de por vida (solo si la instala un profesional dentro de EE. UU.)

  • Garantía estándar del fabricante al por menor (incluida en el precio de compra): La garantía del fabricante de 2 años cubre únicamente el hardware (cuerpo, mecánica y pantalla, si corresponde) y no cubre consumibles (batería) y accesorios en la medida en que estén sujetos a agotamiento (disminución de su vida útil) dependiendo de la intensidad de su uso. El mal funcionamiento del dispositivo solo está cubierto cuando el dispositivo se utiliza según las condiciones descritas en el manual del usuario (cargas máximas, instalación adecuada, etc.). Consulte la política de reembolso para obtener más detalles.
