Shelly Plus PM Mini. Wi-Fi operated smart energy meter, 1 channel 16 A. No relay inside.
Shelly Plus PM Mini. Wi-Fi operated smart energy meter, 1 channel 16 A. No relay inside.
Ask for Dealer Price
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability

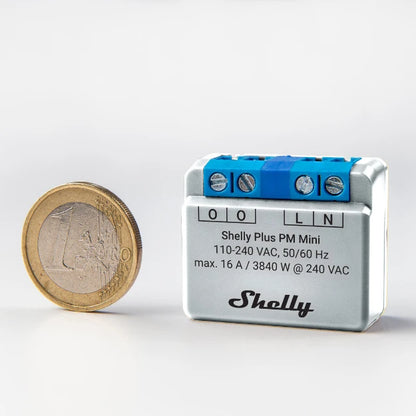

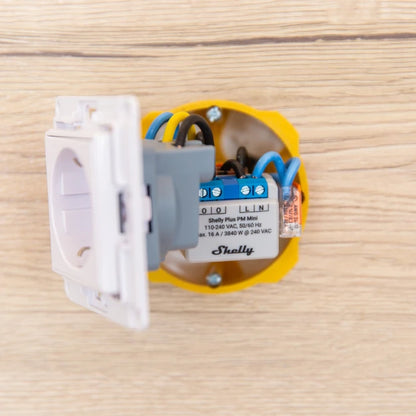

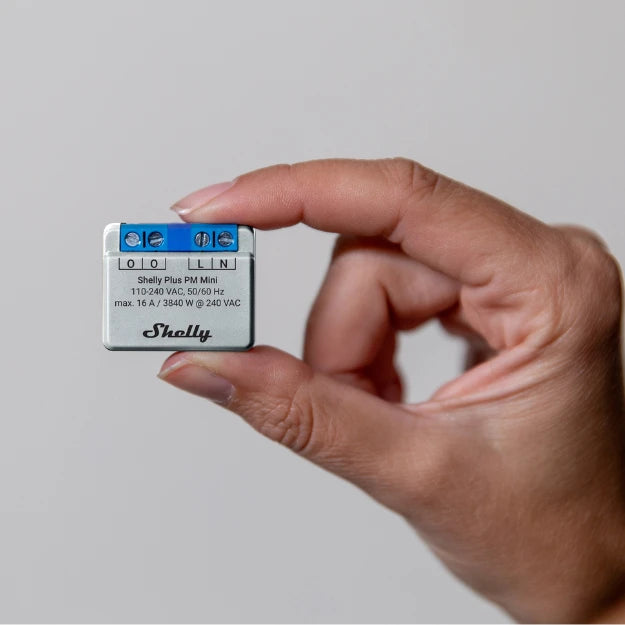

Shelly Plus PM Mini* is the smallest energy meter in the world for precise power monitoring. Connect your lights or electrical appliances in less than 10 minutes and monitor their power consumption from anywhere. Small enough to fit behind any wall switch or socket, Shelly Plus PM Mini is retrofit and highly compatible with your existing smart ecosystem.
Designed with convenience in mind, the mini relays series have all the capabilities of the Plus series fit into a compact and space-saving form factor. With their size reduced by 35% of the Shelly Plus devices, the Shelly Plus Mini are perfect for those tight spaces where traditional relays simply won't fit. Despite their small size, the Shelly Plus Mini devices don't compromise on performance or functionality.
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation platform, including proprietary systems like Control4, URC, Crestron and more.
- Supports up to 16 A at 240 VAC
- Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
- Wi-Fi range extender & Bluetooth gateway
- Extremely fast processor for immediate reaction - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wiring Diagram
| Physical | |
|---|---|
| Size (HxWxD): | 29x34x16 ±0.5 mm / 1.11x1.34x0.63 ±0.02 in |
| Weight: | 13 ±1 g / 0.46 ±0.04 oz |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | White |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 - 240 VAC |
| External protection: | 16 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | <1.2 W |
| Output circuits ratings | |
| Max measurement voltage: | 240 VAC |
| Max measurement current: | 16 A |
| Max measurement power: | 3840 W |
| Power measurement: | Yes |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4,2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| (Depends on local conditions) | |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| MQTT: | Yes |
| UPD: | Yes |
| Scripting: | Yes |
